Split Core Current Transformer, 5-5000A Input, 1-5A Output

Name: Split Core Current Transformer, 5-5000A Input, 1-5A Output
Brand: Shinhom
SKU: SCTK831 Series
Rating: 4.5 (146 reviews)

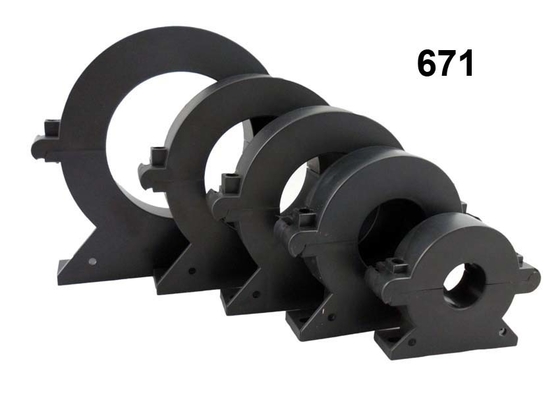

Large Image : Split Core Current Transformer, 5-5000A Input, 1-5A Output Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	SCTK831 Series

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	10000/MONTH

Contact Now

Detailed Product Description

Current Range:	5-5000A	Output:	1-5A
Accuracy:	0.2, 0.5, 1.0, 3.0	Product Name:	Split-core Current Transformer
Perating Frequency:	50-60Hz	Customizable:	Yes

SCTK831 Series Split Core Current Transformer up to 5000A Input Snap Closing / Opening,Light Weight

The SCTK831 series of split core style current transformers are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without disconnecting cables circuits for CT installation. This method permits a safer, easier and portable current measurement.

Electrical Parameter

Frequency	50-60Hz
Rated Input	5A-5000A
Measuring range	10%In-130%In
Rated Output	1-5A
Ratio	± 1.0％
Phase angle	≤ ±30min
Dielectric strength	3.0KV/1mA/1min
Insulation Resistance	DC500V/100MΩmin

Features:

Test range: 5 to 5000A AC input, output of 1-5A
Split core design, safe, easy to install, portable
Wide inner window, allowing clamping of big cables or bus-bars
Test hole series size clamp leaker AC current transformer
Split core current transformer with interleaved joint and hinge structure
Wide range of sizes to accommodate all the existing installations
Operating Temp: －25℃～＋75℃

Applications:

Electrical lines and equipment of current measurement, control and protection
Measures AC current flow to electric motors, lighting, air condition equipment, etc
Compatible with HVAC temperature control, power management, building automation systems
