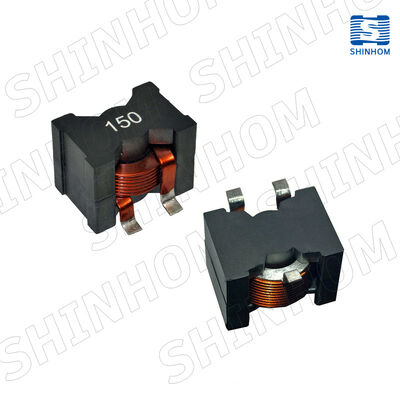

SPQ2618B Series High Current Power Inductor with Ultra-Low DCR & Magnetic Shielding for DC-DC Converters

• High current capability – Isat up to 125A (10% drop)

• Ultra-low DCR – As low as 0.48mΩ

• Magnetically shielded – Low radiation noise

• Flat wire technology – High current density, superior thermal performance

• Inductance range – 1.0µH to 10.0µH

• Operating temperature – -40°C to +125°C

• SRF – Up to 35MHz+

• DC-DC Converters – Buck/boost power conversion
• Automotive Electronics – Vehicle power systems
• Industrial Control – Motor and PLC power
• High-Performance Computing – Server and GPU power
• Telecom Equipment – Base station power modules
• Portable Devices – High-power mobile supplies

Q: What are the main advantages of the SPQ2618B series inductors?

A: The SPQ2618B series uses flat wire winding technology and a magnetic shielding structure. It features ultra-low DCR (0.48 mΩ) and a saturation current up to 125 A, reducing conduction losses while effectively suppressing radiated noise. It is ideal for high power-density DC-DC converters.
