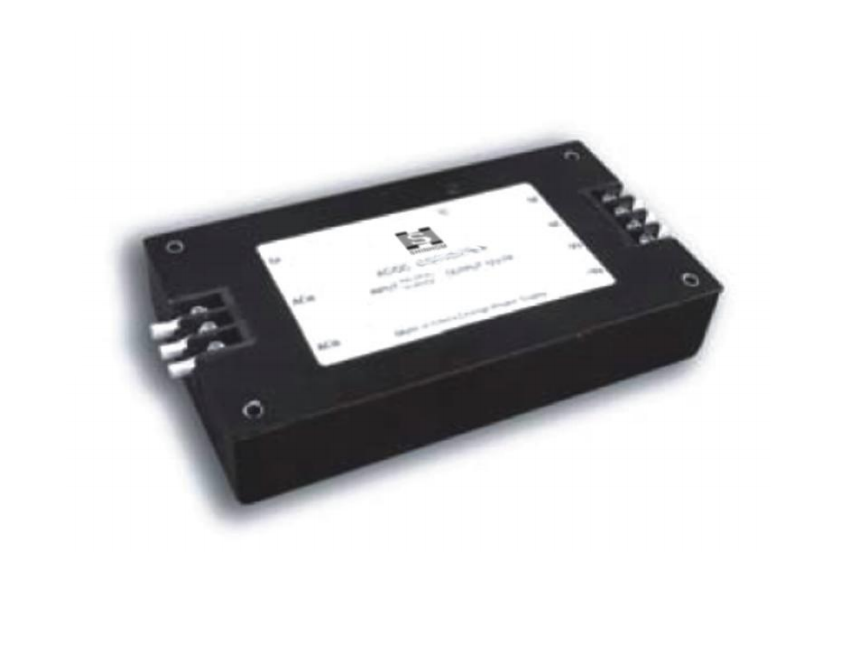

SWAC Series 150W AC/DC Power Supply

Engineered for robust industrial applications, the SWAC Series AC/DC Power Supply delivers reliable performance with wide input voltage range from 85V to 264V AC. This high-efficiency switching power supply features integrated surge suppression and broadband noise filtering, ensuring stable operation in demanding environments. Complying with UL 1950 and IEC950 safety standards, it offers terminal connection convenience and excellent thermal management with multiple cooling options. Optimized for industrial automation systems, this power solution maintains consistent voltage output with precision regulation across varying load conditions.

Features:

• Input Voltage Range: 85-264V AC

• Output Power: 50-150W (model dependent)

• Output Voltage: 1.8-48V customizable

• Output Current: 2-6A selectable

• Switching Frequency: 160-200kHz

• Voltage Accuracy: ±1%

• Line Regulation: ±0.2%

• Load Regulation: ±0.4%

• Operating Temperature: -25°C to +85°C (industrial grade)

• Isolation Resistance: 500MΩ

• MTBF: >500,000 hours

• Cooling Options: Natural convection to forced air cooling (0.5-2M/S)

Applications

Industrial Automation: Power supply for PLCs, motor controllers and industrial control systems requiring stable voltage output.

Telecommunications: Network equipment and communication devices needing wide voltage input range.

Test & Measurement: Precision instruments requiring high-accuracy voltage regulation and low noise.

Military Systems: Rugged applications demanding operation across extended temperature ranges.

Broadcast Equipment: Studio consoles and professional audio/video systems with clean power requirements.

Embedded Computing: Industrial computers and IoT gateways requiring compact, reliable power solutions.
