LPM6060B Series SMD Molded Power Inductor with Low DCR, High Saturation Current, and Compact Dimensions for DC/DC Converters

5000
MOQ
LPM6060B Series SMD Molded Power Inductor with Low DCR, High Saturation Current, and Compact Dimensions for DC/DC Converters
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Low DCR SMD Power Inductor

,

High Saturation Current Molded Power Inductor

,

Compact Dimensions Dip Power Inductor
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS
Model Number: LPM6060B
Document: LPM6060B Series_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description

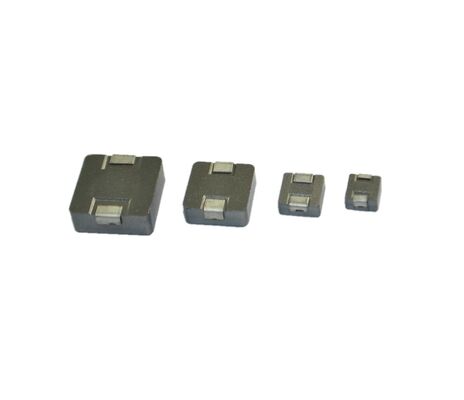

SMD Molded Power Inductors LPM6060B Series
Engineered for high-efficiency power conversion in compact designs, the LPM6060B series of SMD power inductors delivers reliable performance through advanced carbonyl iron powder core technology. These molded inductors feature a low-profile footprint (6.6mm * 6.4mm * 6.0mm) and are optimized for low DCR inductors applications, ensuring minimal power loss and enhanced thermal stability. Fully RoHS compliant and lead-free, they support demanding DC/DC conversion circuits where space, efficiency, and reliability are critical.
Key Specifications
Parameter Range/Value
Inductance Range 4.7µH to 33µH (@20kHz, 10Aac)
Heat Rating Current 3.6A to 11A
Saturation Current 3.7A to 13.1A
DCR (Typical) 14.46mΩ to 95.68mΩ
SRF (Typical) 7MHz to 21MHz
Operating Temperature -40°C to +165°C
Dimensions 6.6mm * 6.4mm * 6.0mm
Compliance 100% lead-free, RoHS compliant
Primary Applications
  • DC/DC converters for CPU power in Notebook PCs
  • Power management in cellular phones, LCD displays, HDDs, and portable devices
  • Thin on-board power supply modules for network exchangers
  • VRM (Voltage Regulator Module) applications in servers
  • Power circuits in DVCs, DSCs, PDAs, and other compact electronics
Frequently Asked Questions
What makes the LPM6060B suitable for notebook CPU converters?
Its low DCR and high saturation current ensure efficient power delivery with minimal heat generation, ideal for CPU VRM applications.
How is the heat rating current defined?
Heat rated current (Irmd) is the DC current that causes a temperature rise of approximately 40°C in the inductor under test conditions.
Are these inductors compatible with lead-free soldering processes?
Yes, the LPM6060B series is 100% lead-free and fully compliant with RoHS standards, suitable for modern eco-friendly manufacturing.
What is the typical self-resonant frequency range?
SRF ranges from 7MHz to 21MHz depending on the inductance value, making them stable across common switching frequencies.
