LPM6030B Series SMD Molded Power Inductor with 3.0mm Ultra-Low Profile, High Saturation Current (39A), and Ultra-Low DCR for High-Current Power Circuits

5000
MOQ
LPM6030B Series SMD Molded Power Inductor with 3.0mm Ultra-Low Profile, High Saturation Current (39A), and Ultra-Low DCR for High-Current Power Circuits
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

3.0mm Ultra-Low Profile SMD Power Inductor

,

High Saturation Current Molded Power Inductor

,

Ultra-Low DCR Dip Power Inductor
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS
Model Number: LPM6030B
Document: LPM6030B Series_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
SMD Molded Power Inductors LPM6030B Series

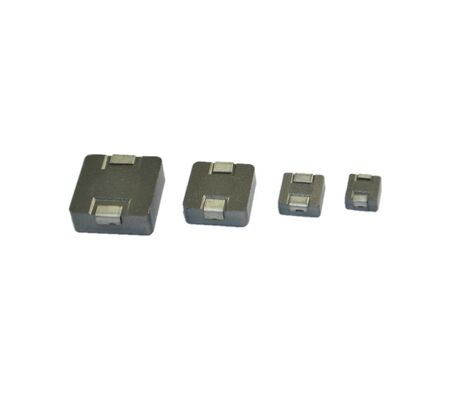

Designed for space-constrained, high-current power circuits, the LPM6030B series represents a breakthrough in low profile inductor technology, with a remarkably slim height of just 3.0mm. Utilizing advanced carbonyl iron powder cores, these SMD power inductors deliver exceptional high saturation current performance, with ratings up to 39A, ensuring stable operation under demanding load conditions. Their ultra-low DCR minimizes conduction losses, making them ideal for high-efficiency, high-density power conversion designs in portable and compact electronics.
Key Features
  • Inductance range: 0.18µH to 3.3µH (±20% @0Adc)
  • Heat rating current (IDC): 8A to 32A
  • Saturation current (Isat): 12.2A to 39A
  • DCR (Typ.): 1.59mΩ to 19.92mΩ
  • Self-Resonant Frequency (Typ.): 26MHz to 141MHz
  • Ultra-low profile: 6.6mm x 6.4mm x 3.0mm
  • 100% lead-free and RoHS compliant
  • Operating temperature: -40°C to +165°C
Technical Specifications
Parameter Range/Value
Inductance Range 0.18µH to 3.3µH (±20% @0Adc)
Heat Rating Current (IDC) 8A to 32A
Saturation Current (Isat) 12.2A to 39A
DCR (Typical) 1.59mΩ to 19.92mΩ
Self-Resonant Frequency 26MHz to 141MHz
Dimensions 6.6mm x 6.4mm x 3.0mm
Operating Temperature -40°C to +165°C
Applications
  • High-current DC/DC converters for CPU and GPU power delivery in laptops and ultrabooks
  • Power management modules (PMM) in smartphones, tablets, and LCD displays
  • On-board power supplies for networking and communication equipment
  • Point-of-load (PoL) converters in servers and storage devices
  • Portable consumer electronics including DSCs, DVCs, and PDAs
Frequently Asked Questions
What is the main advantage of the LPM6030B's 3.0mm height?
The ultra-low 3.0mm profile allows for integration into extremely thin modern devices, such as slim laptops and compact modules, where Z-height is critically limited.
How does the high saturation current benefit DC/DC converters?
A high saturation current ensures the inductor maintains its inductance under high load conditions, preventing performance drop-off and ensuring stable voltage output in CPU/GPU VRM applications.
Are these inductors suitable for high-frequency switching?
Yes, with typical SRF up to 141MHz for lower inductance models, they are stable for use in modern high-frequency switch-mode power supplies.
What does the heat rating current (IDC) indicate?
It is the DC current that causes the inductor's temperature to rise by approximately 40°C above ambient, providing a guideline for thermal management in continuous operation.
