RF Terminations and Attenuators with DC – 40 GHz Frequency Range, 50 Ω, 75 Ω, or Custom Loads, and 1 W – 50 W Continuous Power Handling

5000
MOQ

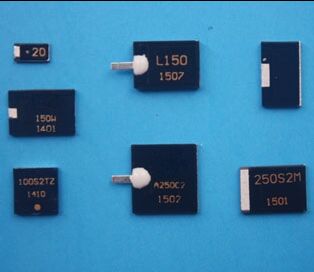

RF Terminations and Attenuators with DC – 40 GHz Frequency Range, 50 Ω, 75 Ω, or Custom Loads, and 1 W – 50 W Continuous Power Handling
Features Gallery Product Description Chat Now
Features
Specifications
1: Wide Frequency Range
2: High Attenuation Accuracy
3: Low Insertion Loss
4: Low Return Loss
5: High Power Handling
6: Stable & Reliable Performance
Operating Frequency:: DC – 40 GHz
Power Handling:: 1 W – 50 W Continuous
Operating Temperature:: -40°C To +85°C
Storage Temperature:: -55°C To +125°C
Highlight:

DC – 40 GHz RF Terminations

,

50 Ω

,

75 Ω
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: RF terminations and attenuators
Document: RF terminations and attenua...rs.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
Our RF terminations and attenuators provide precise signal control and load matching for a wide range of RF and microwave applications. Engineered for stability and reliability, they support broadband frequency ranges and offer low VSWR, high power handling, and minimal signal distortion.
These components are ideal for laboratory testing, wireless communication systems, radar, and aerospace applications. Available in standard and customizable configurations, our products meet the needs of both general-purpose and mission-critical systems.
Key Features
  • Wide Frequency Range: Covers DC up to 40 GHz, suitable for most RF applications
  • High Power Handling: Supports up to 50 W continuous power
  • Precision Attenuation: Provides accurate signal reduction with ±0.2 dB tolerance
  • Low VSWR: Ensures minimal reflection and signal loss
  • Compact & Robust: Small form factor with durable metal housing
  • Customizable: Frequency range, attenuation value, power rating, and connectors can be tailored
Applications
  • RF & Microwave Test Equipment
  • Communication Systems
  • Aerospace & Radar Systems
  • Laboratory Measurement & Calibration
  • General Signal Conditioning
Product Series
Fixed RF Terminations
High-stability terminations designed to provide accurate load matching. Available in multiple power ratings and frequency ranges.
Specifications Example
Frequency Range DC - 18 GHz
Power Handling 5 W - 50 W
VSWR ≤1.2
Connector Type SMA, N-type, or custom
Fixed Attenuators
Precision fixed attenuators with low insertion loss and accurate attenuation values. Ideal for signal level adjustment and measurement systems.
Specifications Example
Frequency Range DC - 26.5 GHz
Attenuation 1 - 30 dB
Tolerance ±0.2 dB
Power Handling 1 - 20 W
Connector SMA / N-type
Programmable Attenuators (Optional)
Digitally controlled attenuators offering flexible signal reduction for automated test systems.
Specifications Example
Frequency 10 MHz - 20 GHz
Attenuation Range 0 - 31 dB
Step Size 0.5 dB
Interface USB / GPIB / TTL
Product Attributes
Operating Frequency DC - 40 GHz
Attenuation / Load Value 1-30 dB or custom
Power Handling 1 W - 50 W
Operating Temperature -40°C to +85°C
Storage Temperature -55°C to +125°C
Core Material / Housing Stainless steel or aluminum alloy
Connector Type SMA, N-type, or customer-specified
VSWR ≤1.2 typical
Customization Available Attenuation value, frequency range, power rating, and connector type
MOQ Negotiable
Product Highlights
  • Accurate attenuation with low insertion loss
  • Stable performance across wide frequency ranges
  • Compact and rugged design for lab and field use
  • Flexible options for custom requirements
