Name: Compact Size Low Insertion Loss High Attenuation LTCC Filters for RF Microwave Applications
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: LTCC Filters
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

1: Compact Size

2: Miniaturized SMD Packaged In Low Profile And Lightweight

3: Low Insertion Loss, High Attenuation

4: High Soldering Heat Resistance

5: Eliminate Noise Over A Wide Frequency Range

6: Idea For High Frequency And Space Limited Designs

Highlight:

Compact Size LTCC Filters

Low Insertion Loss RF Filters

High Attenuation Low Temperature Co-Fired Ceramic Filters

Basic Infomation

Place of Origin: China

Brand Name: SHINHOM

Certification: RoHS/ISO/UL/CE/IATF16949/CNAS

Model Number: LTCC Filters

Document: LTCC-Filters-_.pdf

Payment & Shipping Terms

Delivery Time: 2~8weeks

Payment Terms: L/C,T/T

Gallery

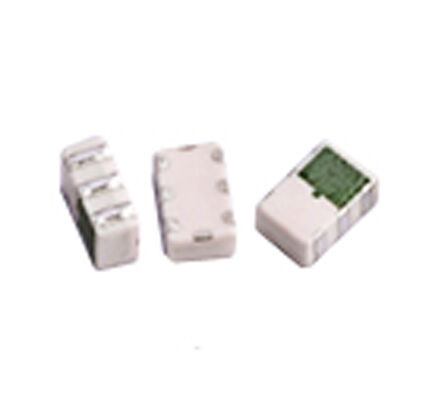

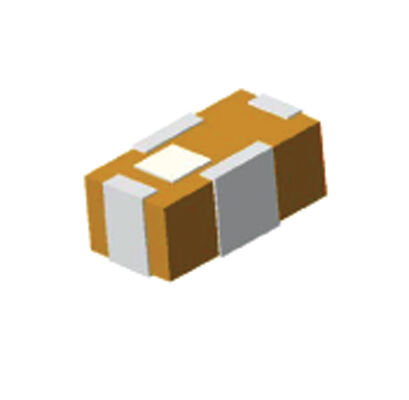

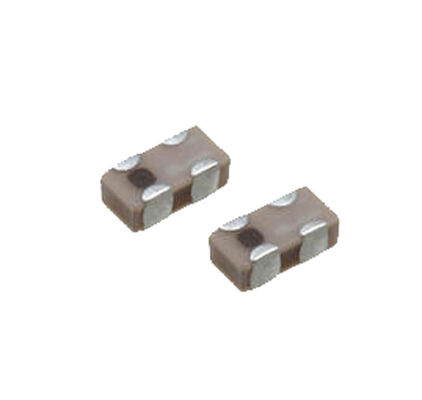

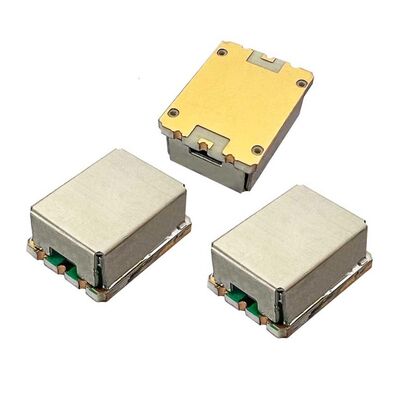

Compact Size Low Insertion Loss High Attenuation LTCC Filters for RF Microwave Applications

Product Description

LTCC Filters Overview

Our LTCC Filters (Low Temperature Co-Fired Ceramic Filters) are precision RF and microwave filtering components built using advanced multilayer ceramic technology. By co-firing ceramic with conductive materials at low temperatures, LTCC filters achieve compact size, low insertion loss, high attenuation, and excellent temperature stability—making them ideal for size-constrained and high-performance RF front-end designs.

LTCC technology enables highly integrated, rugged filter structures that deliver consistent performance and repeatability across production volumes, providing designers with reliable solutions for modern communication systems.

Key Features

Miniaturized & Compact: Small footprint and lightweight LTCC multilayer construction supports dense PCB layouts and space-limited applications.
Low Insertion Loss: High-quality resonator design ensures minimal signal loss in the passband.
High Attenuation: Strong out-of-band rejection improves system selectivity and reduces noise.
Excellent Thermal Performance: LTCC materials and structure provide stable performance across wide temperature ranges.
Rugged & Reliable: Dense ceramic body offers mechanical robustness, suitable for harsh environments and industrial applications.
Customizable Designs: Frequency band, filter type, insertion loss, and termination style can be tailored to specific application requirements.

Applications

LTCC filters are widely used across many RF and microwave systems, including:

Wireless Communications: Cellular, Wi-Fi, IoT modules, and base stations.
RF Front Ends: Harmonic suppression and band selection in transceivers.
Consumer Electronics: Bluetooth, GPS, and RF signal conditioning.
Industrial & Test Equipment: Stability and reliability in measurement and control systems.
Automotive Radar & Telematics: High-performance filtering in advanced driver assistance systems (ADAS).

Why Choose Our LTCC Filters?

Advanced Multilayer Technology: High circuit density and RF performance enabled by LTCC fabrication.
Reliable & Repeatable: Stable electrical characteristics and tight tolerance control.
Compact & Rugged Package: Space-saving design suited for harsh environments.
Application Flexibility: Suitable for telecommunications, consumer electronics, automotive, and industrial systems.
