Name: SMD Mount Isolator with Low Insertion Loss High Isolation and Wide Frequency Coverage for RF Microwave Systems
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: SMD Mount Isolators
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

1: High RF Performance, Ultra-competitive Price

2: Military, Space And Commercial Applications

3: Low Insertion Loss, High Isolation, High Power Handling

4: Custom Design Available Upon Request

VSWR:: Typically ≤1.3:1

Impedance:: 50 Ω Standard

Package Type:: Surface-mount (SMD)

Operating Temperature:: -40°C To +85°C (typical)

Storage Temperature:: -55°C To +125°C

Highlight:

Low Insertion Loss SMD Mount Isolator

High Isolation Surface-Mount RF Isolator

Wide Frequency Coverage Microwave Isolator

Basic Infomation

Place of Origin: China

Brand Name: SHINHOM

Certification: RoHS/ISO/UL/CE/IATF16949/CNAS

Model Number: SMD Mount Isolators

Document: SMD Mount Isolators-.pdf

Payment & Shipping Terms

Delivery Time: 2~8weeks

Payment Terms: L/C,T/T

Gallery

SMD Mount Isolator with Low Insertion Loss High Isolation and Wide Frequency Coverage for RF Microwave Systems

Product Description

SMD Mount Isolators

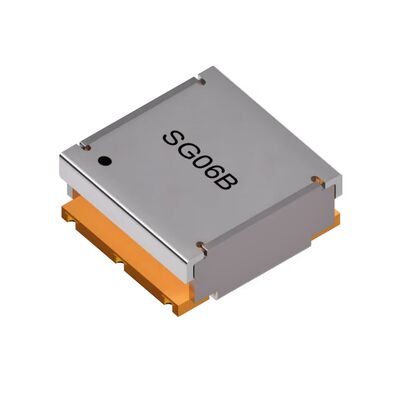

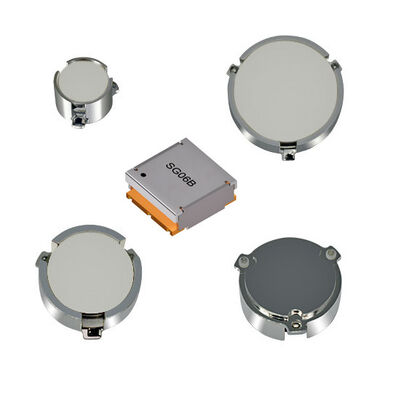

Our SMD Mount Isolators are compact, surface-mount RF components engineered to provide unidirectional signal transmission while effectively suppressing reverse reflections. Designed for modern high-density PCB layouts, these isolators protect sensitive RF circuits, enhance signal stability, and improve overall system reliability in compact wireless devices.

With optimized ferrite materials and precision SMD packaging, our surface-mount isolators deliver low insertion loss, high isolation, and stable performance across wide frequency ranges, making them suitable for telecom infrastructure, IoT devices, RF modules, and microwave subsystems.

Key Features

Surface-Mount Design: Compact SMD package for automated assembly and space-saving PCB layouts
Unidirectional RF Protection: Allows forward signal transmission while absorbing reflected power
Low Insertion Loss: Preserves signal strength in the forward direction
High Isolation: Effectively suppresses reverse signals to protect amplifiers and RF front-end circuits
Wide Frequency Coverage: Available for various RF bands depending on model
Stable Performance: Reliable operation across extended temperature ranges
RoHS-Compliant Materials: Environmentally compliant construction
Customizable Options: Frequency band, isolation level, and package dimensions available upon request

Applications

SMD mount isolators are widely used in compact RF and microwave systems, including:

Wireless Communication Modules: Protect RF front-end circuits in 4G/5G modules
RF Power Amplifiers: Prevent load reflections from affecting amplifier stability
IoT & Smart Devices: Support compact wireless designs with stable signal flow
Base Stations & Small Cells: Improve transmission reliability in telecom infrastructure
Radar & Microwave Subsystems: Maintain signal integrity in high-frequency systems
Test & Measurement Equipment: Enhance measurement stability and equipment protection

Why Choose Our SMD Mount Isolators?

Optimized for Compact Designs: Ideal for space-limited PCB layouts and modern RF modules
Improved System Protection: Reduces reflection-induced instability in RF circuits
Consistent RF Performance: Stable electrical characteristics across temperature variations
Flexible Customization: Tailored solutions for telecom, IoT, and microwave applications
