Self-Locking Split-Core CT SCTK660A Series for Power Distribution and Automation Control

Negotiation
MOQ
Negotiation
Price
Self-Locking Split-Core CT SCTK660A Series for Power Distribution and Automation Control
Features Gallery Product Description Chat Now
Features
Specifications
Current Range: 0.5~630A
Output: 0.333V(AC) Or 0-500mA
Class: 0.2、0.5、1.0
Dielectric Strength: 5.0kv/1mA/1min
Inner Window: 10mm To 32mm
Customizable: Yes
Highlight:

Self-Locking Split-Core CT for power distribution

,

Split Core Current Transformer for automation control

,

SCTK660A Series CT with self-locking feature
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK660A Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

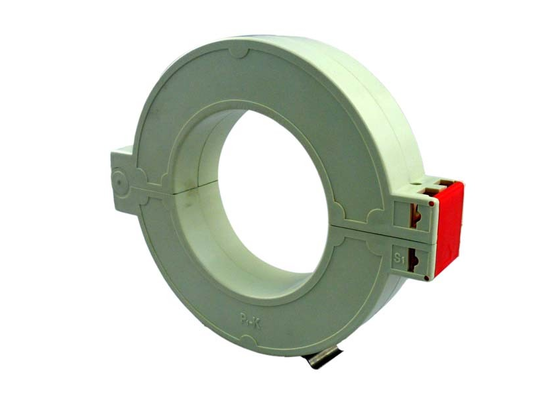

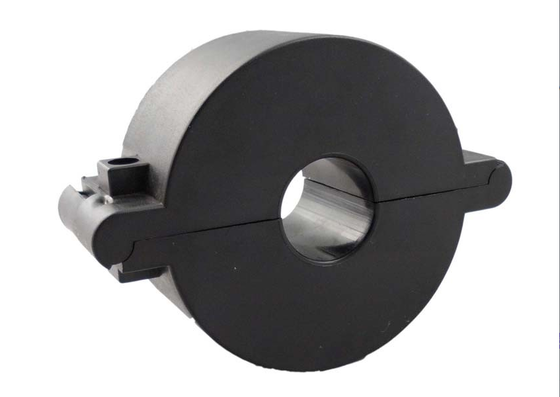

The SCTK660A series split-core current transformer is designed for current measurement and monitoring in new or existing power distribution networks. The product uses a split-core self-locking structure that allows quick installation without disconnecting or removing cables or busbars. The wide window design accommodates large-diameter cables or busbars. The secondary winding has a built-in precision parallel resistor, providing a safe low-voltage output without the need for external sampling resistors. Epoxy encapsulation ensures excellent insulation performance. It is widely used for current measurement, monitoring, and protection in power lines and equipment, as well as current and power measurement for motors, lighting, air compressors, HVAC, and automation control systems, as well as energy monitoring and relay protection devices.

Features
  • Measuring range – 0.5A-630A
  • Split-core self-locking structure
  • Wide window – accommodates large cables and busbars
  • Built-in precision resistor – safe low-voltage output
  • Epoxy resin encapsulation
  • Multiple sizes available
  • Installation without cable removal
  • Saves installation time and cost
Applications
  • Power line current measurement and monitoring
  • Electrical equipment current protection
  • Motor current and power measurement
  • Lighting system power monitoring
  • Air compressor current monitoring
  • HVAC systems
  • Automation control systems
  • Energy monitoring and relay protection devices
Electrical Parameter
Frequency50-2.5KHz
Rated Input0.5A-630A
Measuring range10%In-130%In
Rated Output0.333V(AC) or 0-5A
Ratio≤± 0.2％
Phase angle≤ ±30min
Dielectric strength5.0KV/1mA/1min
Insulation ResistanceDC500V/100MΩmin
Mechanical Parameter
CaseABS/UL94-V0
BobbinPBT
CorePermalloy
Internal structureEpoxy
ConstructionTie
Operating Temp－25℃～＋75℃
Operating Humidity≤85%
Output ConnectionTerminal or UL1015 22AWG Wire 1.5m

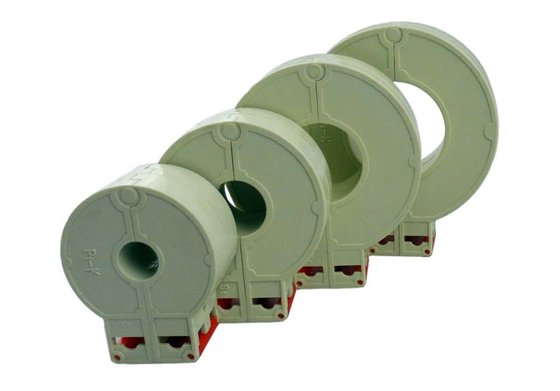

Type selection
P/NRated Input
(A)		Output (mA/V)AccuracyDimensions(mm)
ABCDE
SCTK660A-010

0.5-100A

(1,5,10,30,50,100)

0-50mA

0.333V

0.2,0.5,1.050.040.022.510.024.0
SCTK660A-016

1-250A

(10,50,75,100,200,250)

0-100mA/1A

0.333V

0.2,0.5,1.061.050.022.516.024.0
SCTK660A-025

5-400A

(10,50,100,200,250,400)

0-200mA/1A/5A

0.333V

0.2,0.5,1.074.062.022.525.024.0
SCTK660A-032

5-630A

(10,50,100,200,250,630)

0-200mA/1A/5A

0.333V

0.2,0.5,1.081.570.022.532.024.0

Self-Locking Split-Core CT SCTK660A Series for Power Distribution and Automation Control

Notes: Product specifications can be customized

FAQ

Q: Does the split-core current transformer require power-off or cable removal during installation?

A: No. The SCTK660A series uses a split-core self-locking structure with a core that opens and closes. It can be installed without disconnecting or removing any cables or busbars. It is especially suitable for retrofit projects and applications where power cannot be turned off, significantly reducing installation costs and time.

Q: What are the advantages of the self-locking structure?

A: The self-locking structure ensures the transformer remains securely locked onto the cable or busbar after installation. It will not loosen or shift due to vibration or external forces, ensuring safe and reliable installation. Operation is simple, and no special tools are required for installation or removal.

Q: What is the function of the built-in precision resistor?

A: The secondary winding has a built-in precision parallel resistor. It converts the current signal directly into a safe low-voltage output, eliminating the need for external sampling resistors. This simplifies installation, improves safety, and saves component costs and installation space.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
