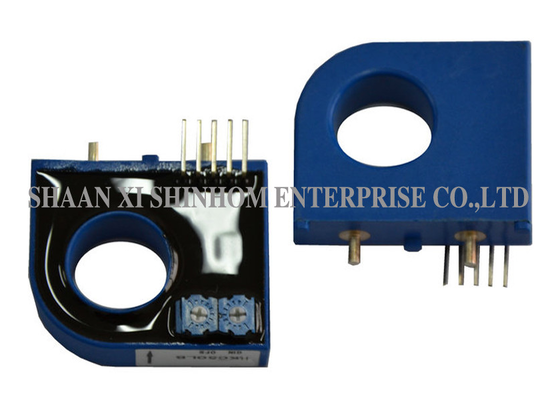

24V Hall Effect Current Sensor 300A 0.625V for Grid Monitoring and Industrial Equipment

The HKC-LBS5 series open-loop Hall effect current sensor is based on the Hall effect measurement principle, providing electrical isolation between the primary and secondary circuits. It accurately measures DC, AC, or pulse currents. The product uses an open-loop design with a supply voltage of 24V (±5%). The rated output voltage is 0.625V ±1%. It offers easy installation, high accuracy, and an operating temperature range of -25°C to +85°C. It complies with UL94-V0 flame retardant standards and RoHS environmental requirements. It is widely used in switching power supplies (SMPS), uninterruptible power supplies (UPS), variable frequency control equipment, inverters, electric locomotives, grid monitoring, AC variable speed drives, servo motor drives, DC motor drive static converters, and welding power supplies.

• Operating current: 0 to 300A
• Power supply: 24V (±5%)
• Rated output voltage: 0.625V ±1%
• Mount easily
• High accuracy grade
• Open loop design
• Working (operating) temperature: -25 to +85°C
• Certification: UL 94-V0
• RoHS Directive-compliant

• Switching power supplies (SMPS)
• Uninterruptible power supplies (UPS)
• Variable frequency control equipment
• Inverters
• Electric locomotives
• Grid monitoring
• AC variable speed drives and servo motor drives
• Welding power supplies and DC motor drives

Notes: Product specifications can be customized
