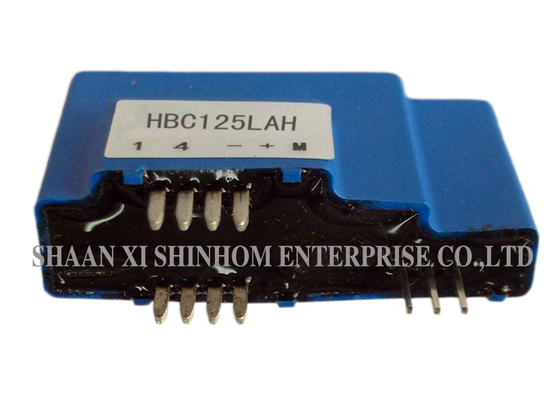

HBC125LAH Series Hall Effect Current Sensor

The HBC125LAH series open-loop Hall effect current sensor is based on the Hall effect measurement principle, providing electrical isolation between the primary and secondary circuits. It accurately measures DC and AC currents, with a rated current of 125A and a rated output current of 125mA ±0.5%. The product has a supply voltage of ±12 to ±15V (±5%). It offers high accuracy and easy installation. Operating temperature: -25 to +85°C. It complies with UL94-V0 flame retardant standards and RoHS environmental requirements. It is widely used in switching power supplies (SMPS), uninterruptible power supplies (UPS), variable frequency control equipment, inverters, battery-powered applications, AC variable speed drives, servo motor drives, DC motor drive static converters, and welding power supplies.

Features:
  • Operating current: 125A
  • Power supply: ±12V ~ ±15V(±5%)
  • Rated output current: 125mA ±0.5%
  • High accuracy grade
  • Mount easily
  • Working (operating) temperature: -25 to +85°C
  • Certification: UL 94-V0
  • RoHS Directive-compliant
Applications:
  • Switched mode power supplies (SMPS)
  • Uninterrupted power supplies (UPS)
  • Frequency control device
  • Inverter device
  • Battery supplied applications
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Power supplies for welding applications
ELECTRICAL DATA:
HBC125LAH
Rated input current(IPN) 125 A
Current range(IP) 0～±200 A
Load impedance (@IPN) ±12V(@±ADC) 14～48 Ω
±12V(@ARMS) 14～15
±15V(@±ADC) 29～70 Ω
±15V(@ARMS) 29～29
Sec. Rated current 125±0.5% mA
Supply voltage(VC) ±12～±15±5% V
Static power consumption current(25℃ @±15V) ≤±20 mA
Turns ratio 1:1000
Zero current imbalance ≤±0.2 mA
Electric loss thermostat drift(-40℃～+85℃) ≤±0.95 mA
Response Time ＜1.0 µs
Linearity ≤±0.2 %FS
Insulation voltage(50/60HZ,1min) 2.5 KV
di/dt Tracing accurate ＞50 A/μs
Bandwidth(-3dB) DC…100 KHz
Coil resistance @70℃ 35 Ω
Operating Temperature -40～+85 ℃
Storage Temperature -40～+105 ℃

125A Hall Effect Current Sensor HBC125LAH Series for Inverters and Welding Power Supplies

Notes:

Product specifications can be customized
