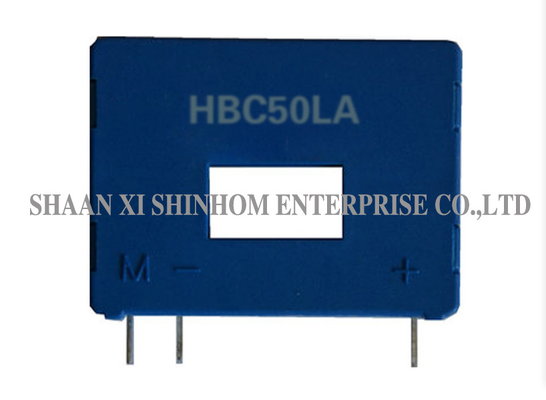

Hall Effect Current Sensor HBC-LA Series for Battery Supplied Applications and DC Motor Drives

The HBC-LA series Hall effect current sensor is based on the Hall effect measurement principle, providing electrical isolation between the primary and secondary circuits. It accurately measures DC, AC, or pulse currents with a measuring range of 0-100A. The product offers a rated output current of 25mA±0.5% or 50mA±0.5%. It provides high accuracy and easy installation. Dynamic performance testing uses a single bar fully filling the primary hole, with the primary wire wound around the top of the sensor for optimal magnetic coupling. It is widely used in welding power supplies, battery-powered applications, AC variable speed drives, servo motor drives, switching power supplies, UPS, and DC motor drive static converters.

Attention:

• Is is positive when Ip flows in the direction of the arrow.
• Temperature of the primary conductor should not exceed 100 ℃.
• Dynamic performance are test with a single bar completely filling the primary hole.
• The primary turns round on the top of the sensor to perform best magnetic clutch

Features:

• Operating currents: 0 to 100A
• Rated output current: 25mA±0.5%, 50mA±0.5%
• Mount easily
• High accuracy grade

Applications:

• Power supplies for welding applications
• Battery supplied applications
• AC variable speed drives and servo motor drives
• Switched mode power supplies (SMPS)
• Uninterrupted power supplies (UPS)
• Static converters for DC motor drives

ELECTRICAL DATA:

Notes: Product specifications can be customized

FAQ

Q: What types of current can this sensor measure?

A: It can accurately measure DC, AC, and pulse currents, suitable for various complex current waveform measurement requirements.

Q: How does the primary wire winding method affect performance?

A: Winding the primary wire around the top of the sensor achieves optimal magnetic coupling, ensuring measurement accuracy and dynamic performance. We recommend following the installation method specified in the product datasheet for optimal performance.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model (including output current specifications). Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
