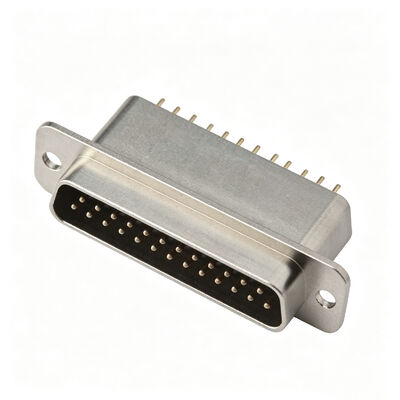

High Performance D-Sub Filter Connector Insertion Loss 1M to 18GHz for Telecom Equipment

The VFD-LX series D-Sub filter connector uses a high-quality tubular ceramic capacitor integrated with the connector shell, specifically designed for communication equipment, industrial control, and medical equipment, ensuring excellent EMI shielding and filtering performance. The product features a robust and reliable structure and supports C-type and PI-type filter options. It meets 1000VDC maximum voltage and wide operating temperature requirements. It is suitable for communication equipment, industrial control equipment, and medical equipment. It is an ideal choice for high-performance connections in EMI filtering and signal transmission.

Features

• Insertion loss – 1M to 18GHz
• C-type and PI-type filters
• Integrated tubular ceramic capacitor design
• 9-pin to 50-pin options
• 100% rigorous testing on every pin
• Wide temperature range – -55 to +125°C
• Maximum voltage – 1000VDC
• Maximum current – 5 Amps

Product Specification Selection Table

Standard Ceramic Capacitor Type

High-Performance Type

Applications

• Computers
• Industrial control equipment
• Graphic workstations
• Program-controlled switches
• Base stations
• Medical equipment
• Communication equipment
• Aerospace

FAQ

Q: Does this product support customisation?

A: Yes. Parameters can be customised based on customer circuit diagrams or application requirements. Please contact our sales team to confirm the customisation plan.

Q: What is the typical lead time for mass orders?

A: Mass order lead time is generally 2-8 weeks. Custom products will be confirmed separately. The specific lead time is subject to confirmation at the time of order.

Q: What quality certifications does this product provide?

A: To be supplemented. Please confirm whether UL, CE, RoHS, and other certification documents are available. Relevant test reports can usually be provided upon customer request.

Q: Do you provide technical support and selection recommendations?

A: Yes. We have a professional technical team that can provide selection recommendations and customisation solutions based on customer application scenarios and circuit requirements.

Q: Are samples free? How soon can I receive them?

A: Samples are free of charge and will be shipped within 3-5 working days. For specific shipping cost policies, please contact our sales team for confirmation.
