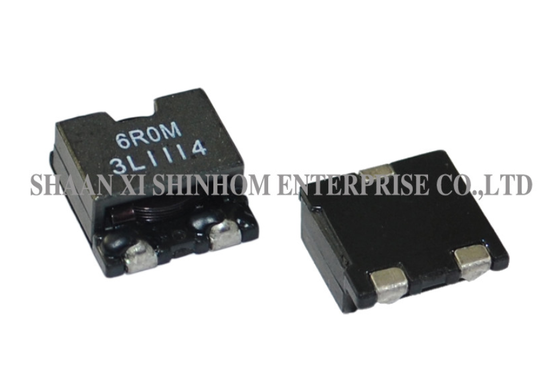

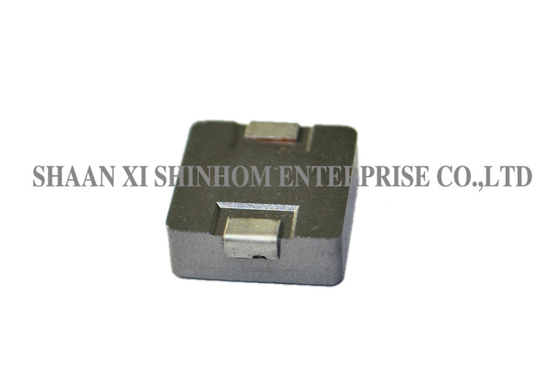

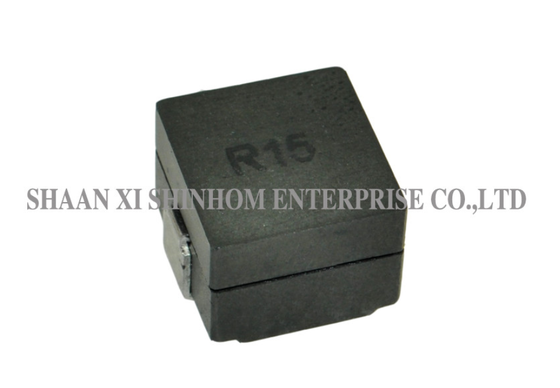

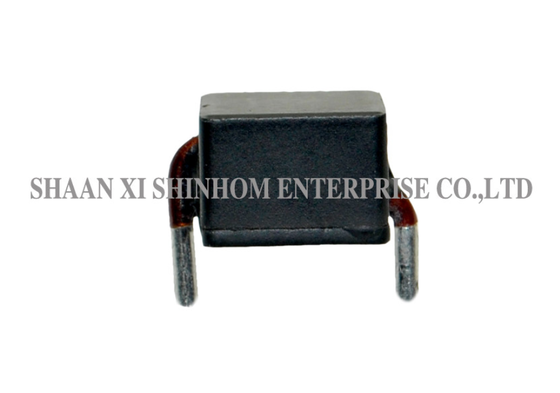

HQ1108 Series Iron Core Shielded Power Inductor for Notebook Computers

HQ1108 Series High Current Power Inductor

The HQ1108 series high-current power inductor is manufactured using a shielded core and composite structure design, specifically designed for PDAs and laptops, ensuring the lowest DCR, high current capacity, and low audible noise. The product features a robust and reliable structure with a maximum height of 8mm and a maximum footprint of 15.5*11mm. It complies with RoHS Directive 2002/95/EC requirements. It is suitable for PDAs, laptops, and servers. It is an ideal choice for high-current power inductor applications in power management and DC-DC conversion.

Features

• Lowest DCR per microhenry

• Height – 8mm max.

• Footprint – 15.5*11mm max.

• Current rating – up to 50Apk

• Inductance range – 0.14µH to 2.25µH

• Handles high transient currents without saturation

• Ultra-low audible noise

• Complies with RoHS Directive 2002/95/EC

APPLICATIONS:

• PDA/notebook/desktop/server applications
• High current POL converters
• Low profile, high current power supplies
• Battery powered devices
• DC/DC converters in distributed power systems
• DC/DC converter for Field Programmable Gate Array (FPGA)

NOTES:

• Test Frequency : 100KHz / 0.1Vdc
• Testing Instrument : L:HP4284A, CH11025,CH3302, CH1320, CH1320S LCR METER/Rdc:CH16502, Agilent33420A MICRO OHMMETER.
• Heat Rated Current (Irms) will cause the coil temperature rise approximately,△T=40℃ without core loss.
• Saturation Current (Isat) will cause L0 to drop approximately 10%
• The part temperature (ambient + temp rise) should not exceed 125℃ under worst case operating conditions. Circuit design, component, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.
• Operating Temperature: -40℃ - +105℃.
• Storage Temperature: -40℃ - +105℃.

Note: Product specifications can be customized.
