High Current CEP104-125HT Series Flat Wire for Communication Systems and Automotive Power Supplies

CEP104/105/124/125HT Series high current power inductors

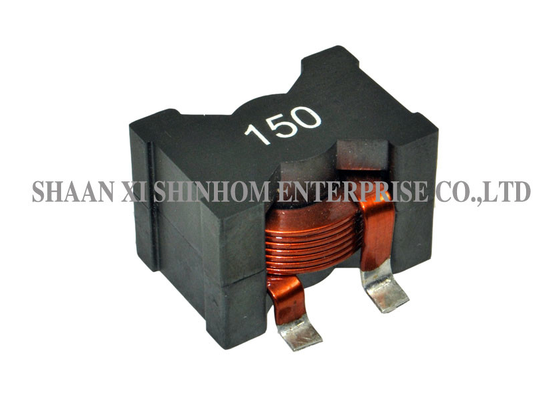

The CEP104/105/124/125HT series shielded SMD power inductor features a high-frequency design and flat wire winding process, offering a shielded structure, low-profile package, and low DCR, with ultra-high current capacity up to 28A.The flat wire process provides stronger current carrying capacity and lower power loss. Excellent thermal stability ensures long-term reliable operation under various working conditions.It is widely used in laptop DC-DC converters, communication systems, automotive power systems, LCD/PDP TVs, network systems, computer peripherals, and CPU power supplies. It is an ideal choice for high-current high-density power supply designs.

FEATURES:

• High Frequency Design
• Shielded Constrution
• Flat wire used
• Excellent Thermal Stability
• Low Profile, Low DCR.
• Super Larg Current up to 28A
• Custom Inductors are available

APPLCATIONS:

• Notebook, DC/DC Converters
• Communication System
• Automotive Systems Power supplier
• LCD PDP Televisions
• Network Systems
• Computer Peripheral Equipment
• CPU Power Supply

NOTES:

• Inductance Testing: HP4284A, 100kHz/1V or equivalent
• RDC:QuadTech 1880 Milliohmmeter
• Isat Current L value drop 65% typ.at IDC against its initial value
• Irms Temperature rise 40℃Max Reference Ambient temperature
• Solderability: 75% of the lead wire Shall be covered
• Soldering Methods: Wave,Reflow
• Operating Temperature:-40℃ to +105℃
• Storage Temperature: -55℃ to +125℃
• Terminal bending strength:24.5N Min
• Moisture resistance: △L/L≤±10% △Q/Q≤±25%

Note: Product specifications can be customized.

FAQ

Q: What are the advantages of flat wire winding compared to traditional round wire?

A: Flat wire has a larger surface area, offering higher current capacity, lower DCR, and better heat dissipation. In high-current applications, flat wire inductors effectively reduce power loss and skin effect loss, improving overall efficiency, especially suitable for high-current applications up to the 28A level.

Q: What are the advantages of the shielded structure?

A: The shielded structure uses a closed magnetic circuit design to confine magnetic flux inside the core. It effectively reduces leakage flux and electromagnetic interference to nearby sensitive circuits, improving system EMC performance.

Q: What is the significance of excellent thermal stability?

A: Excellent thermal stability ensures the inductor maintains stable electrical performance across a wide temperature range, making it suitable for applications with large temperature variations such as automotive electronics and communication equipment, improving system reliability.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
