LPM1707/2313 Series Low Profile High Current Inductor for Battery Powered Devices

Negotiation
MOQ
Negotiation
Price
LPM1707/2313 Series Low Profile High Current Inductor for Battery Powered Devices
Features Gallery Product Description Chat Now
Features
Specifications
Structure: Shielded
Installation: SMT
Pad Size: 12.5*18.5mm,20*24mm
Inductor Value: Fixed Inductor
Operating Temperature: -40℃ - +105℃
Storage Temperature: -40℃ - +105℃
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LPM1707/2313
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description


The LPM1707/2313 series high-current power inductor is manufactured using a composite structure and shielded design, specifically designed for DC-DC converters and personal computers, ensuring high transient current handling, ultra-low audible noise, and low DCR.The product features a robust and reliable structure with a surface-mount design. It meets wide operating temperature requirements.It is suitable for DC-DC converters, personal computers, and PDAs. It is an ideal choice for high-current power inductor applications in power management and power switching.

FEATURES:

  • Handles high transient current spikes without saturation.
  • Ultra low buzz noise, due to composite construction.
  • Shielded construction
  • Lowest height in this package footprint.
  • Lowest DCR/H, in this package size.

APPLiCATIONS:

  • DC/DC converters in distributed power systems
  • Applications usedin power switching
  • Personal computers and other handheldelectronic equipment.
  • PDA/notebook/desktop/server applications
  • High current POL converters
  • Low profile, high current power supplies
  • Battery powered devices

Note: Product specifications can be customized.

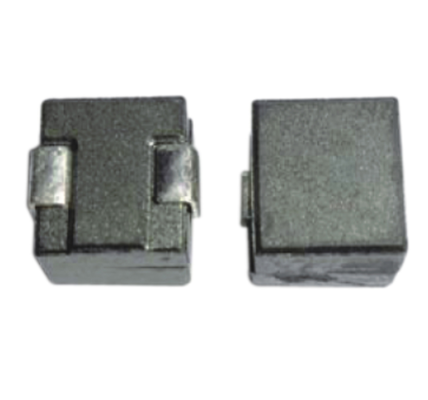

LPM1707/2313 Series Low Profile High Current Inductor for Battery Powered Devices

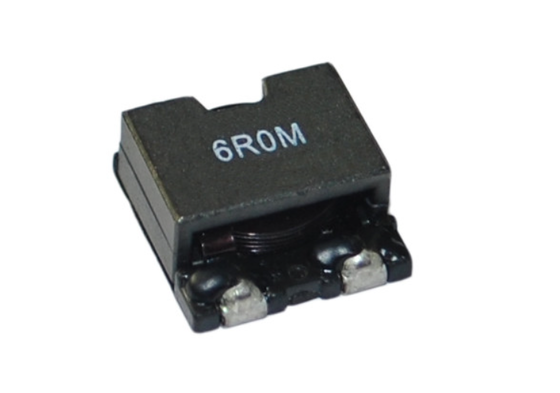

LPM1707/2313 Series Low Profile High Current Inductor for Battery Powered Devices

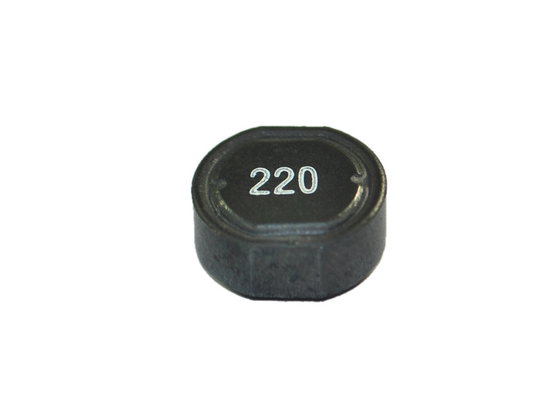

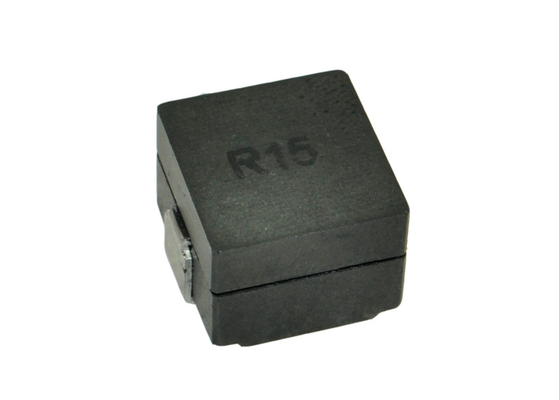

LPM1707/2313 Series Low Profile High Current Inductor for Battery Powered Devices LPM1707/2313 Series Low Profile High Current Inductor for Battery Powered Devices


FAQ

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks; custom products will be confirmed separately.

Q: What are the test conditions and temperature range of the LPM1707/2313 series power inductor?

A: The product is tested at 100KHz / 1Vdc. The heat rating current causes a coil temperature rise of approximately 40°C without core loss. The saturation current causes L0 to drop by approximately 20%. Operating temperature is -40°C to +105°C, and storage temperature is -40°C to +105°C.

Q: What is the significance of the composite structure and shielded design for applications?

A: The composite structure provides ultra-low audible noise, while the shielded design reduces electromagnetic interference. It handles high transient currents without saturation and provides the lowest height and lowest DCR in this package size. It is suitable for DC-DC converters, personal computers, and battery-powered devices.
