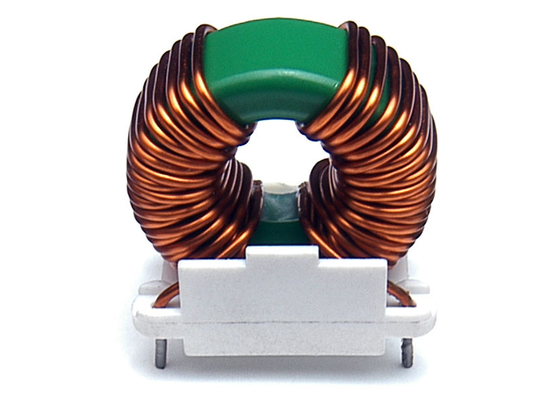

Light Weight Common Mode Power Line Choke ISO9001 Certified for Solar Power Systems

This common mode inductor is manufactured using a toroidal ferrite core and split winding process, specifically designed for solar power systems and wind power generation systems, ensuring high common-mode impedance, low inter-winding capacitance, and wideband operation. The product features a robust and reliable structure and complies with ISO9001 certification and UL94-V0 material requirements. It is suitable for solar power systems, wind power generation, and induction heaters. It is an ideal choice for common-mode inductor applications in EMI suppression and power filtering.

Features

• Separated windings for minimum interwinding capacitance
• Single layer windings for highest common mode impedance over the widest frequency range
• Suitable for 50Hz to 500 KHz
• Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
• All materials used are UL94-VO recognized
• Operating temperature: -55ºC to +105ºC
• Available in either vertical or horizontal mount
• Available in vertical header mount for ease in PCB assembly
• Easy FR-4 board mounting Good vibration resistance

Applications

• Low-frequency AC reactors
• Solar power systems
• Power conditioning systems
• Wind power generation systems
• Automatic drive machinery
• Induction heaters
• Welding machines
• Paper industry

Technical information

1. Max operating voltage:250V at 40℃
2. Hi-Pot 2500Vac winding to winding 3S.
3. Operating temperature: -40℃ to +105℃
4. Storage Temperature: -40℃ to +105℃

Note: Product specifications can be customized.

FAQ

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks; custom products will be confirmed separately.

Q: Do you support small trial orders?

A: Yes. Small trial orders (below the standard MOQ) can be negotiated and receive the same quality standards and delivery commitments as mass orders. Please contact our sales team for details.

Q: What is the significance of UL94-V0 certified materials and 1 to 3mm creepage distance for applications?

A: UL94-V0 certified materials ensure product safety under high-temperature and fire conditions, meeting UL, CSA, and IEC compliance requirements. The 1 to 3mm creepage distance design ensures electrical safety under high-voltage conditions, making it suitable for high-voltage applications such as solar power systems and wind power generation.
