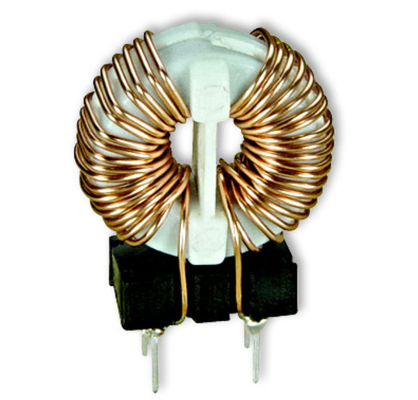

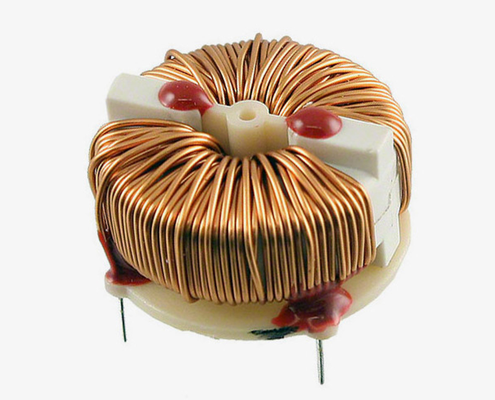

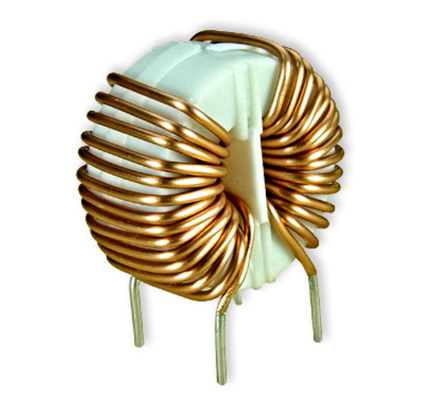

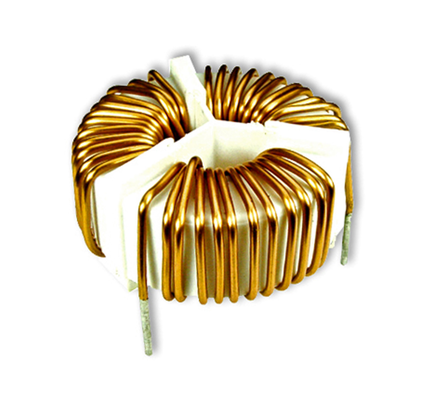

Low Loss Toroidal Common Mode Choke Amorphous Core for DC DC Line Noise Suppression

This low-loss toroidal common mode choke is manufactured using an amorphous core and dual-choke design, specifically designed for DC-DC line noise suppression and communication systems, ensuring high reliability, low DCR, and low temperature rise. The product features a robust and reliable structure and complies with FCC, VCCI, CISPR, and FTZ standards. It is suitable for DC-DC line noise suppression, communication systems, and automotive systems. It is an ideal choice for common-mode choke applications in EMI suppression and power filtering.

1. 1.5A to 17A ratings
2. 1.2mH to 10mH dual chokes
3. Excellent Mechanical Strength
4. 100KHz to 3MHz common mode resonance
5. High Reliability and variant PCB-mount housing
6. Low resistance and temperature rise

• DC-DC line noise suppression
• AC-DC line noise suppression
• Communication systems
• Automotive systems
• LCD/PDP TVs
• Computer peripherals
• Switching power supplies
• Power and signal circuits

1. Max operating voltage:250V at 40℃

2. Hi-Pot 2500Vac winding to winding 3S.

3. Operating temperature: -40℃ to +105℃

4. Storage Temperature: -40℃ to +105℃

Note: Product specifications can be customized.

Q: Does this product support customisation?

A: Yes. Parameters can be customised based on customer circuit diagrams or application requirements. Please contact our sales team to confirm the customisation plan.

Q: What is the typical lead time for mass orders?

A: Mass order lead time is generally 2-8 weeks. Custom products will be confirmed separately. The specific lead time is subject to confirmation at the time of order.

Q: Do you provide technical support and selection recommendations?

A: Yes. We have a professional technical team that can provide selection recommendations and customisation solutions based on customer application scenarios and circuit requirements.

Q: Are samples free? How soon can I receive them?

A: Samples are free of charge and will be shipped within 3-5 working days. For specific shipping cost policies, please contact our sales team for confirmation.
