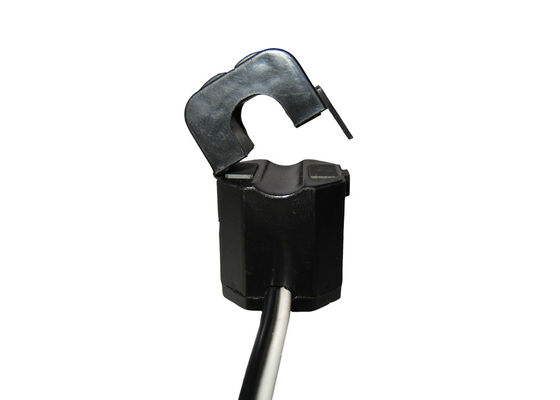

SCTK681B Series low voltage 5A~630A Input 333mV 500mV Output Split Coil Current Transformer,High Accuracy
The SCTK681B series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easier and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary
Features:
Applications:
Mechanical Parameter
| Case | PA /UL94-V0 |
| Bobbin | PBT |
| Core | Permalloy |
| Internal structure | Epoxy |
| Construction | Tie |
| Operating Temp | －25℃～＋75℃ |
| Operating Humidity | ≤85% |
| Output Connection | UL1015 20AWG Wire(twinsted wire) 2.5m |
Electrical Parameter
| Frequency | 50Hz-2KHz |
| Rated Input | 5A-630A |
| Measuring range | 10%In-130%In |
| Rated Output | 0.333V(AC) or 0-500mA |
| Ratio | ≤± 1.0% |
| Phase angle | ≤ ±60min |
| Dielectric strength | 2.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩmin |
Type selection
| P/N |
Rated Input (A) |
Output (mA/V) | Accuracy | Dimensions(mm) | ||||
| Ø0 | A | B | C | |||||
| SCTK681B-010 |
5-75A (5,10,20,50,75) |
0-50mA 0.333V |
0.5,1.0,3.0 | 10 | 41.5 | 30 | 26.5 | |
| SCTK681B-016 |
5-150A (5,10,50,100,150) |
0-100mA 0.333V |
0.5,1.0,3.0 | 16 | 53 | 36 | 30.5 | |
| SCTK681B-024 |
10-250A (10,50,100,200,250) |
0-200mA 0.333V |
0.5,1.0,3.0 | 24 | 70 | 51.5 | 39.0 | |
| SCTK681B-035 |
10-630A (20,100,250,400,600) |
0-500mA 0.333V |
0.5,1.0,3.0 | 35 | 84 | 65 | 41.0 | |
Notes: Product specifications can be customized
