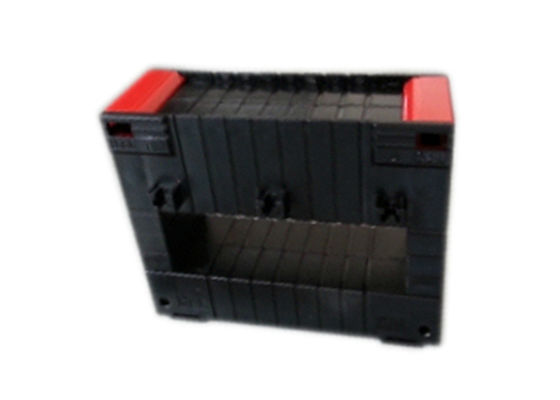

Portable Split Core Current Transformer , Single Phase Current Transformer

Portable Split Core Current Transformer , Single Phase Current Transformer
Portable Split Core Current Transformer , Single Phase Current Transformer Portable Split Core Current Transformer , Single Phase Current Transformer Portable Split Core Current Transformer , Single Phase Current Transformer Portable Split Core Current Transformer , Single Phase Current Transformer

Large Image :  Portable Split Core Current Transformer , Single Phase Current Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK732A Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Contact Now
Detailed Product Description
Input: 0.5A-5000A Output: 0.333V(AC) Or 0-5A
Work Frequency: 50Hz-2.5KHz Accuracy: 0.1、0.2、0.5
Coil Structure: Toroidal Customized: Yes
High Light:

split core ct

,

split core current sensor

SCTK732A Series Split Core Current Transformer with Current Range 100mA to 3000A Single-phase Current Test



        SCTK732A series retro-fit (split-core) current transformer has been specially designed to facilitate their installation in new or already existing net works. It can save time and the installation costs.An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.



Features:

  1. Rated Input: 0.5-5000A
  2. Rated Output: 0.333V(AC) or 0-5A
  3. Small size and easy mounting
  4. Wide inner window, allowing clamping of big cables or bus bars
  5. Wide range of sizes to accommodate all existing installations
  6. High accuracy and reliability

Applications:

  1. Current measurement, monitoring and protection for electrical wiring and equipment.
  2. Current, power and energy monitoring device.

Electrical Parameter

Rated Input 0.5-5000A
Measuring range 5%In-130%In
Rated Output 0.333V(AC) or 0-5A
Ratio ≤ ± 0.2%
Phase angle ≤ ±10min
Dielectric strength 5.0KV/1mA/1min
Insulation Resistance DC500V/100MΩmin



Mechanical Parameter

Case PC+ABS /UL94-V0
Bobbin PC+ABS
Core Silicon
Internal structure Epoxy
Operating Temp －25℃～＋75℃
Operating Humidity ≤85%
Output Connection Terminal





Type selection

Portable Split Core Current Transformer , Single Phase Current Transformer 0

Portable Split Core Current Transformer , Single Phase Current Transformer 1



Portable Split Core Current Transformer , Single Phase Current Transformer 2

Notes: Product specifications can be customized
