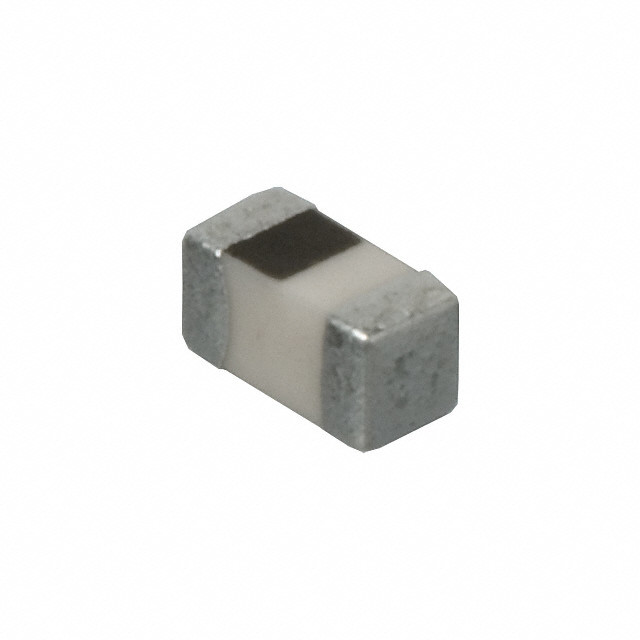

300mA Thin Film Inductor Current Low Resistance Environmental Friendly

5000PCS
MOQ
Negotiation
Price
300mA Thin Film Inductor Current Low Resistance Environmental Friendly
Features Gallery Product Description Chat Now
Features
Specifications
Resistance: Fixed Resistor
Application: Hard Disk, Modem, Printers,DSC, DVC, PDA, DVD And HDD
Packaging: Surface Mount
Type: SMT Chip Inductor
Current Range: 250mA-300mA
Inductance: 1nH To 470nH
Highlight:

chip coil inductor

,

thin film inductor

Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AIML0805C
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

AIML0805C Ceramic chip inductors with high self resonate frequency, low DCR,1.0nH to 470nH inductance,300mA current​





Features:

  1. Advanced thin film technology
  2. Miniature size 0402C/0603C available
  3. Small size, no lead is suitable for high-density surface mount
  4. Low resistance value of the highB
  5. Excellent solderability and heat shock
  6. Suitable for wave soldering and reflow soldering
  7. Enamel-coated glass and high precision, small resistance drift
  8. Environmentally friendly products

 Applcations:

  1. Medical Equipment
  2. Testing/Measurement Equipment
  3. Printer Equipment
  4. Automatic Equipment Controller
  5. Converters
  6. Communication Device, Cell phone ,GPS ,PDA
  7. Personal Computers
  8. Portable Equipment
  9. CD-ROM, Hard Disk, Modem, Printers
  10. DC - DC converters
  11. DSC, DVC, PDA, DVD and HDD

Technical information:

  1. Solderability:90% of the terminal Electrode shall be covered Preheat:@ 260℃±5℃ for 160 seconds Solder:H63AA Eutectic Solder Flux:Rosin,Dip for 5 seconds ±1 second
  2. Thermal Shock: lnductance shall be Within±5% of imitial value and Q shall be within ±30% of initial value When temperaturs is -40℃ and +85℃ for 30 Min.for each 100 cycles
  3. Operating Temperature:-25℃ to +85℃
  4. Storage Temperature: -40℃ to +85℃

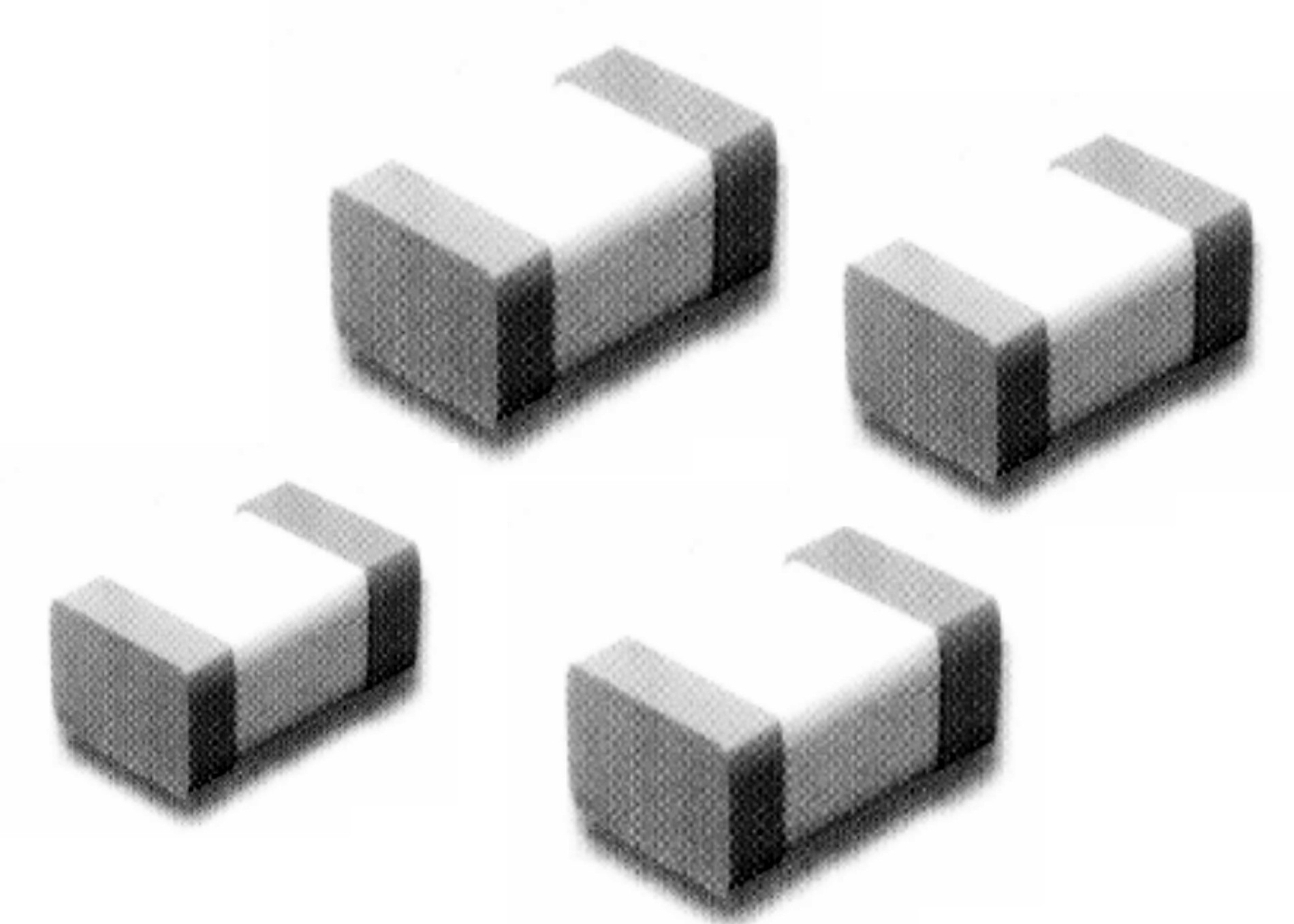

300mA Thin Film Inductor Current Low Resistance Environmental Friendly 0

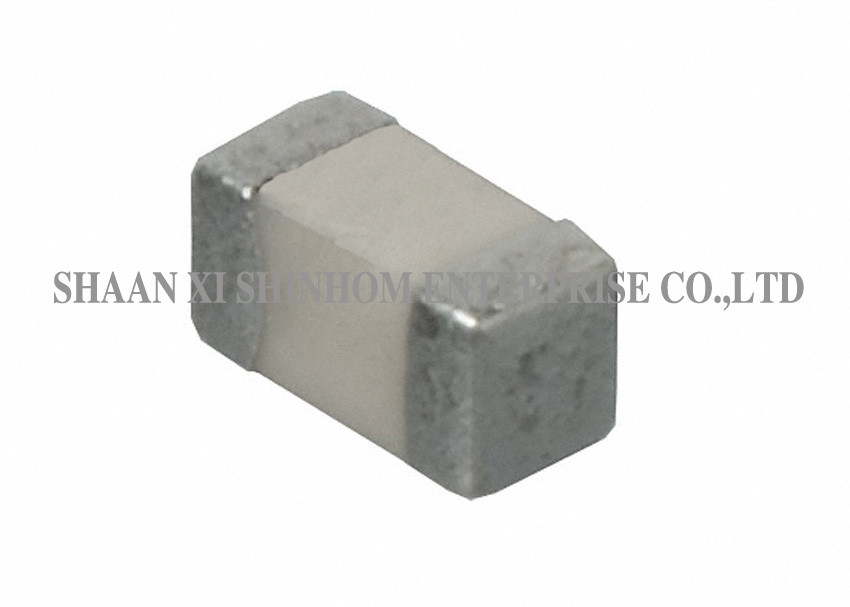

300mA Thin Film Inductor Current Low Resistance Environmental Friendly 1



Note:All specifications subject to change without notice.
