Low DCR Ferrite Chip Inductor , High Frequency Inductor 1.0 * 0.5 * 0.5mm

I'm Online Chat Now
Certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

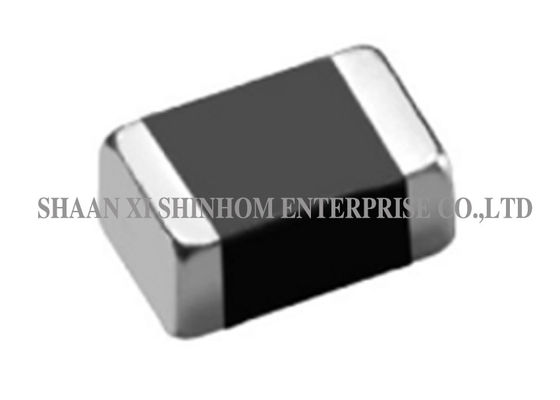

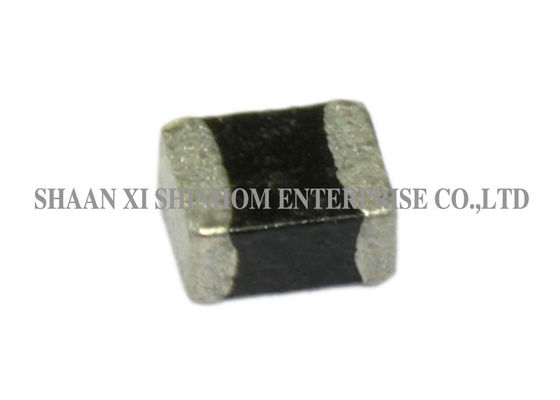

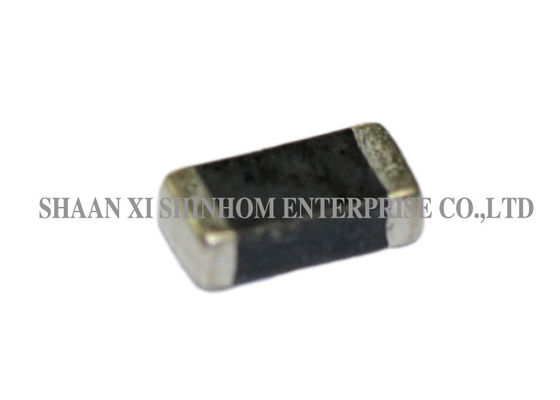

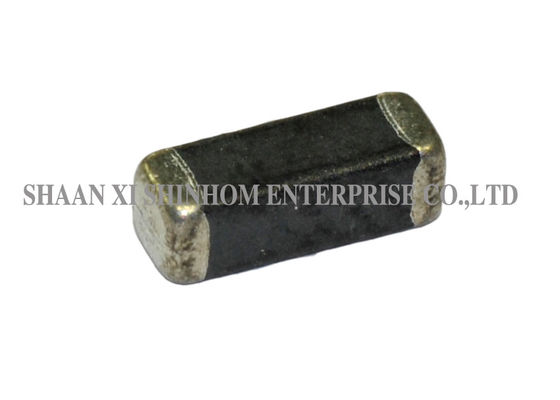

Low DCR Ferrite Chip Inductor , High Frequency Inductor 1.0 * 0.5 * 0.5mm

Low DCR Ferrite Chip Inductor , High Frequency Inductor 1.0 * 0.5 * 0.5mm
Low DCR Ferrite Chip Inductor , High Frequency Inductor 1.0 * 0.5 * 0.5mm Low DCR Ferrite Chip Inductor , High Frequency Inductor 1.0 * 0.5 * 0.5mm Low DCR Ferrite Chip Inductor , High Frequency Inductor 1.0 * 0.5 * 0.5mm Low DCR Ferrite Chip Inductor , High Frequency Inductor 1.0 * 0.5 * 0.5mm

Large Image :  Low DCR Ferrite Chip Inductor , High Frequency Inductor 1.0 * 0.5 * 0.5mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AIML0402 Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Installation: SMT Size: 1.0*0.5*0.5mm
Application: DSC, DVC, PDA, DVD And HDD Inductance: 47nH To 18uH
Type: Chip Inductor Current Range: 5mA-25mA
High Light:

chip coil inductor

,

thin film inductor

AIML0402 Series chip inductors with high self resonate frequency, low DCR,Multilayer Chip Inductor Ferrite Bead





Features:

  • Closed magnetic circuit
  • Avoids crosstalk
  • Excellent solderability
  • High reliability
  • Counter measures for complying
  • with FCC,VDE,CSA,VCCI and CE
  • Closed magnetic circuit avoids crosstalk
  • Suitable for high density installation and re-flow soldering
  • Sizes 0402 / 0603 / 0805 / 1206 / 1210

 Applcations:

  1. Medical Equipment
  2. Testing/Measurement Equipment
  3. Printer Equipment
  4. Automatic Equipment Controller
  5. Converters
  6. Communication Device, Cell phone ,GPS ,PDA
  7. Personal Computers
  8. Portable Equipment
  9. CD-ROM, Hard Disk, Modem, Printers
  10. DSC, DVC, PDA, DVD and HDD

Technical information:

  1. Testing:(Equivalents acceptable)lnductance & Q-HP4195A+HP41951
  2. DCR:VOAC-7412
  3. SRF:HP8753C
  4. Solderability:75% of the terminal
  5. electrode shall be covered Preheat:@ 180℃±5℃ for 2-3 minutes Solder temperature:230℃for 4 seconds ±1 second Flux:Emersion into methanol solution with Colophony for 3 to 5 seconds.
  6. IDC:The DC current at which tither the initial L value is decreased by 5% with the application of DC bias or the value of current at which the temperature of the element is increased by 20℃
  7. Operating Temperature:-40℃ to +100℃



Low DCR Ferrite Chip Inductor , High Frequency Inductor 1.0 * 0.5 * 0.5mm 0



Notes: Product size and inductance can be customized
