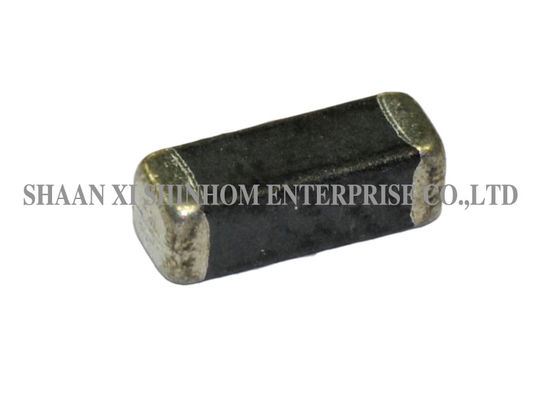

Ferrite Bead Multilayer Chip Inductor With High Self Resonate Frequency

Name: Ferrite Bead Multilayer Chip Inductor With High Self Resonate Frequency
Brand: Shinhom
SKU: AIML1210 Series
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (156 reviews)
ISBN: 11725861

Large Image : Ferrite Bead Multilayer Chip Inductor With High Self Resonate Frequency Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	AIML1210 Series

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Installation:	SMT	Size:	3.22.51.3mm
Application:	Portable Equipment	Inductance:	47nH To 18uH
Type:	SMD Chip Inductor	Current Range:	50mA-600mA
High Light:	chip coil inductor , chip power inductor

AIML1210 Series chip inductors with high self resonate frequency,Multilayer Chip Inductor Ferrite Bead

Features:

Closed magnetic circuit
Avoids crosstalk
Closed magnetic circuit avoids crosstalk
Suitable for high density installation and re-flow soldering
Sizes 0402 / 0603 / 0805 / 1206 / 1210

Applcations:

Medical Equipment
Testing/Measurement Equipment
Portable Equipment
CD-ROM, Hard Disk, Modem, Printers
DSC, DVC, PDA, DVD and HDD

Technical information:

Eectrode shall be covered Preheat:@ 180℃±5℃ for 2-3 minutes Solder temperature:230℃for 4 seconds ±1 second Flux:Emersion into methanol solution with Colophony for 3 to 5 seconds.
IDC:The DC current at which tither the initial L value is decreased by 5% with the application of DC bias or the value of current at which the temperature of the element is increased by 20℃
Operating Temperature:-40℃ to +100℃

Ferrite Bead Multilayer Chip Inductor With High Self Resonate Frequency 0
