Surface Mount Wire Wound Chip Inductor Customized Inductance Excellent SRF

Surface Mount Wire Wound Chip Inductor Customized Inductance Excellent SRF
Surface Mount Wire Wound Chip Inductor Customized Inductance Excellent SRF Surface Mount Wire Wound Chip Inductor Customized Inductance Excellent SRF Surface Mount Wire Wound Chip Inductor Customized Inductance Excellent SRF Surface Mount Wire Wound Chip Inductor Customized Inductance Excellent SRF Surface Mount Wire Wound Chip Inductor Customized Inductance Excellent SRF

Large Image :  Surface Mount Wire Wound Chip Inductor Customized Inductance Excellent SRF Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AISC Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Working Frequency: High Frequency Size: 0402/0603/0805/1008/1210/1812
Structure Of Magnetizer: Ceramic Or Ferrite Inductance: Customized
Type: SMT Chip Inductor Operating Temperature: -40℃ To +125℃
High Light:

chip power inductor

,

thin film inductor

AISC Series surface mount ceramic chip inductor,SMD Wire Wound Ceramic Chip Inductor,Ferrite core inductor optional



Features:

  • Ceramic Core(Ferrite core optional)
  • High frequency design
  • Excellent Q values
  • Excellent SRF
  • High reliability
  • Excellent thermal stability
  • Sizes 0402/0603/0805/1008/1210/1812



 Applcations:

  • Modems
  • Mobile Radios
  • Cordless Telephones
  • Global Positioning Systems
  • Telecommunications Systems



Technical information:

  • Testing: (Equivalent acceptable),lnductance: HP4191A,Q:HP4291A,SRF:HP8753B,RDC:measured @ 25℃
  • Operating Temperature: Ceramic-40℃ to +125℃
  • Pad metalization: Tungsten-nickel with gold flash
  • Solder methods: Wave, Reflow, Vapor Phase
  • Solderability: Max 260℃ for 10 seconds





Size Inductance range Size(mm)L*W*H
0402

1nH to 400nH(Ceramic Core)

1.2*0.6*0.6
0603 1.6nH to 390nH(Ceramic Core) 1.68*1.0*0.85
0805 2.2nH to 6.8uH(Ceramic Core) 2.2*1.6*1.3
1008 3.9nH to 200nH(Ceramic Core) 2.65*2.6*2.0
1210 3.9nH to 8.6uH(Ceramic Core) 3.35*2.7*2.1
1210F 1.2uH to 470uH(Ferrite core) 3.35*2.7*2.1
1812F

1.0uH to 1000uH(Ferrite core)

4.56*3.25*3.0

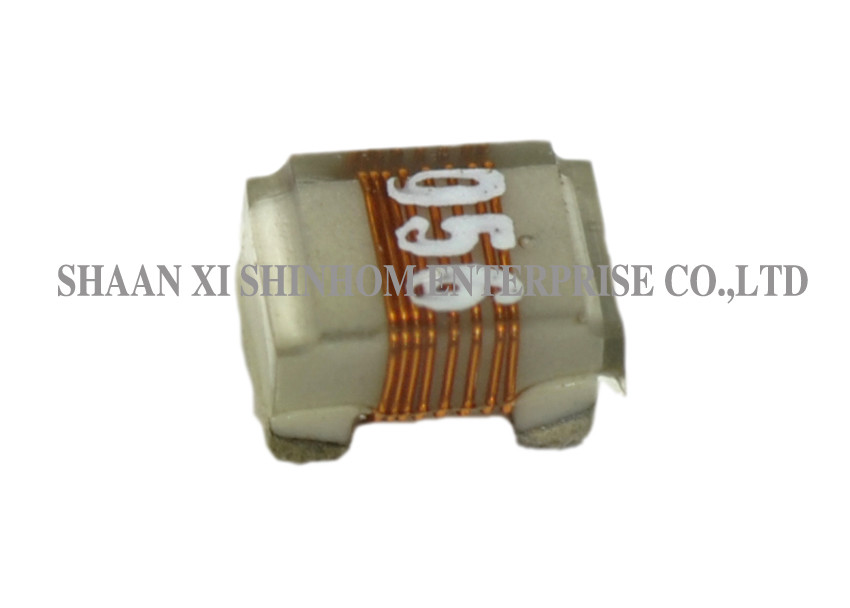

                              Surface Mount Wire Wound Chip Inductor Customized Inductance Excellent SRF 0

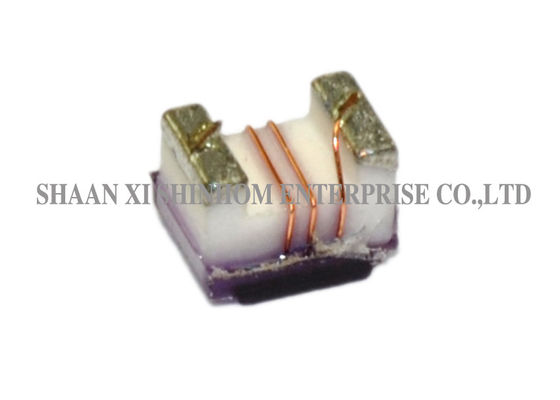

                        Surface Mount Wire Wound Chip Inductor Customized Inductance Excellent SRF 1



Notes: Product size and inductance can be customized
