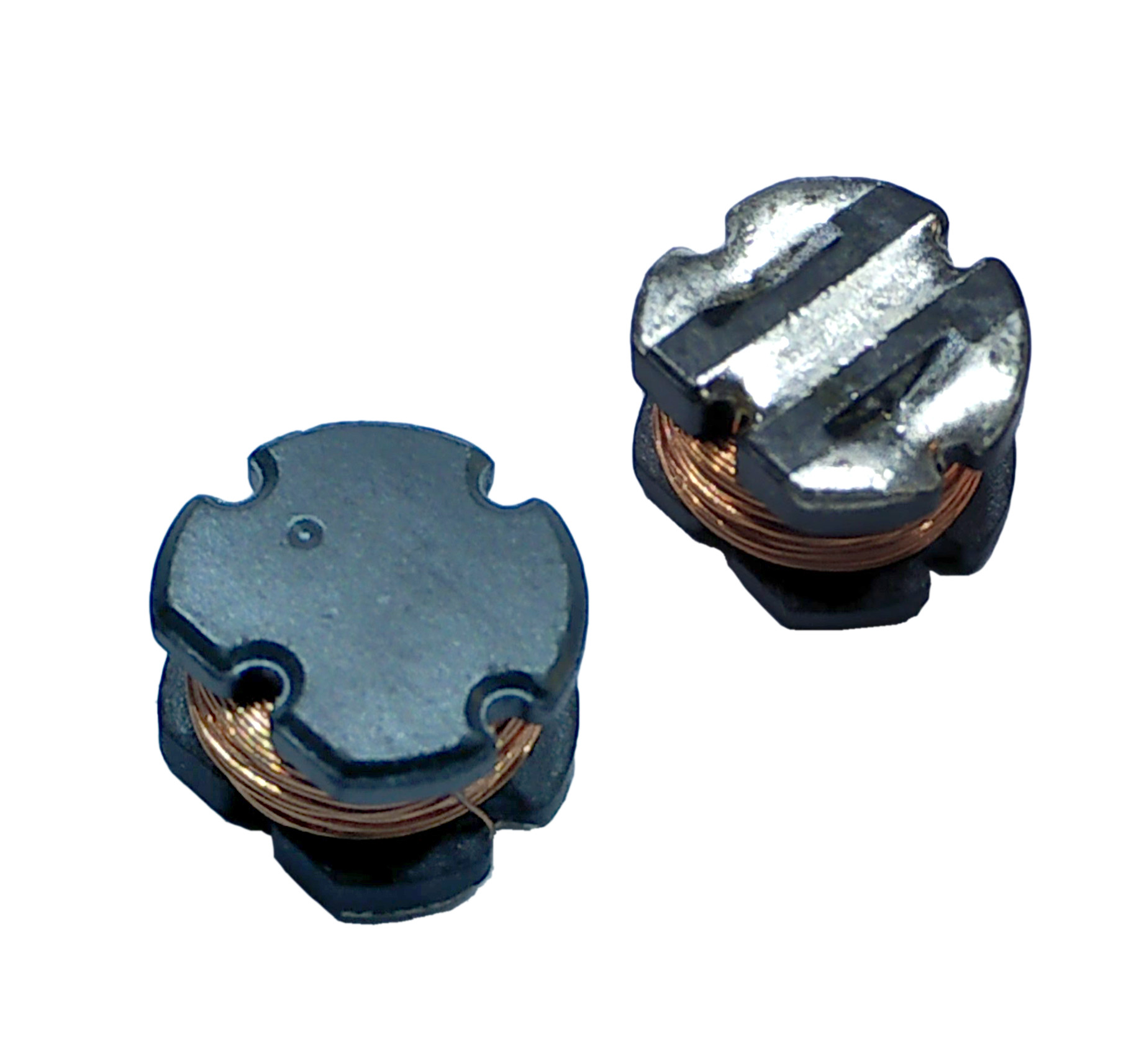

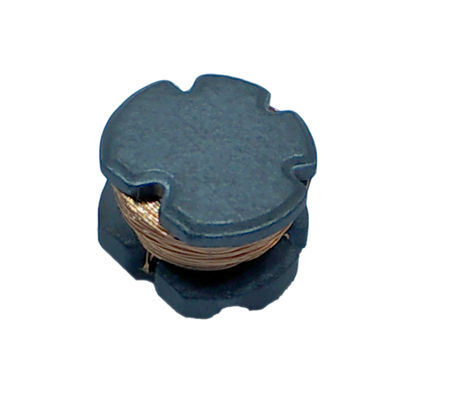

Ferrite Core SMD Three Lead Surface Mount Power Inductors

Ferrite Core SMD Three Lead Surface Mount Power Inductors
Ferrite Core SMD Three Lead Surface Mount Power Inductors Ferrite Core SMD Three Lead Surface Mount Power Inductors Ferrite Core SMD Three Lead Surface Mount Power Inductors Ferrite Core SMD Three Lead Surface Mount Power Inductors

Large Image :  Ferrite Core SMD Three Lead Surface Mount Power Inductors Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDR0805-2W Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Inductance: 800uH Tolerance: ±30%
Installation: SMD Core: Ferrite
Storage Temperature: -25℃ To +105℃ Certification: RoHs CE UL
High Light:

SMD Surface Mount Power Inductors

,

Three Lead Ferrite Power Inductors

,

800uH Ferrite Core Power Inductors

SMD H type filter inductor Atomizer alarm buzzer drives inductor,SMD inductor,Three-lead inductor





Electrical specification​:

  • L(1-2): 25uH±30% @1.0KHz,0.25V
  • L(3-1): 800uH±30% @1.0KHz,0.25V
  • DCR(1-2): 0.5Ω Max
  • DCR(3-1): 4.0Ω Max
  • IDC(1-2): 1.3A Max(Inductance drop 30% Max)
  • IDC(3-1): 0.3A Max(Inductance drop 30% Max)



Features

  • Large permissible D.C. current and low D.C. resistance
  • PVC Sleeve protects the winding
  • Low DC resistance and large permissible DC current with high reliability
  • High saturation magnetic-flux density and high efficiency
  • Open Magnetic circuit construction
  • Low cost and high reliability
  • Small, medium and large quantities available



Applications



  • Atomizer
  • Alarm
  • Buzzer
  • Inkjet Printer
  • Copying machine
  • Display monitor
  • Video tape recorder
  • Video camera
  • Color TV
  • Lighting and car electronics



Ferrite Core SMD Three Lead Surface Mount Power Inductors 0





Note: Product specifications can be customized.
