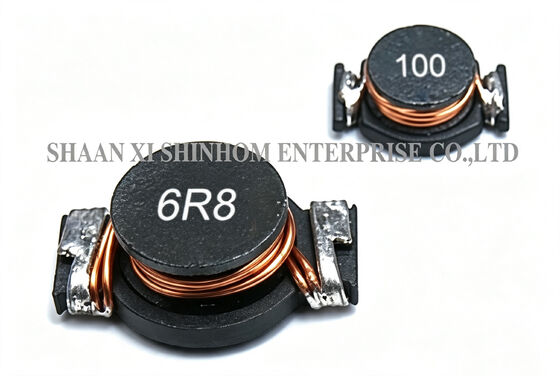

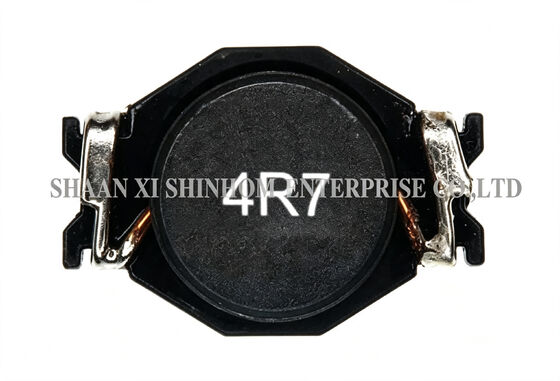

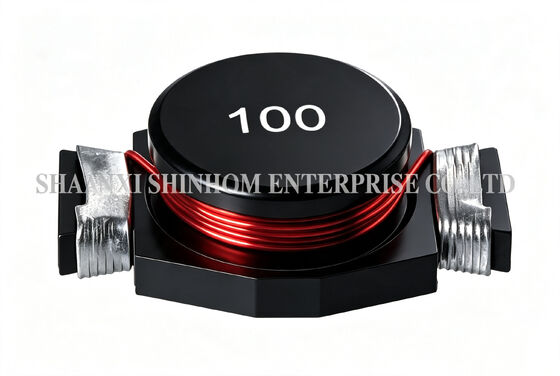

High Current Unshielded SMD Power Inductor SPI-HC Series for Low Voltage DC-DC Converters

The SPI-HC series high-current unshielded SMD power inductor is designed for low-voltage high-current DC-DC converters and microprocessor power supply applications. Rated current is up to 51.7A. The product features a low-profile package and ultra-low DCR, effectively reducing power loss and improving system efficiency. The flat top design is suitable for automated pick-and-place assembly. The unshielded open structure offers cost advantage as its core competitiveness. Open-circuit inductance is tested at 100KHz / 250Vrms. Rated current is defined as the RMS current value that causes a temperature rise of approximately 40°C at 85°C ambient temperature. It is widely used in high-current low-voltage DC-DC converters, 3.3V microprocessor power supplies, and CPU power management.

FEATURES

• Current up to 51.7A
• Flat-top for Pick & Place
• Very Iow DC Resistance
• Low profile

APPLICATIONS

• Ideal for High Current,Low Voltage DC - DC Converters
• Designed for 3.3V Microprocessor

TECHNICAL INFORMATION

• Open Circuit Inductance Test Parameters: 100KHz,.250Vrms,0.0Adc.
• RMS current for an approximate ΔT of 40℃. at an ambient temperatuer of 85℃.
• Peak current for approximately 30% rolloff.
• DCR limits 20℃.
• Operating Temprature:-40℃ to + 85℃
