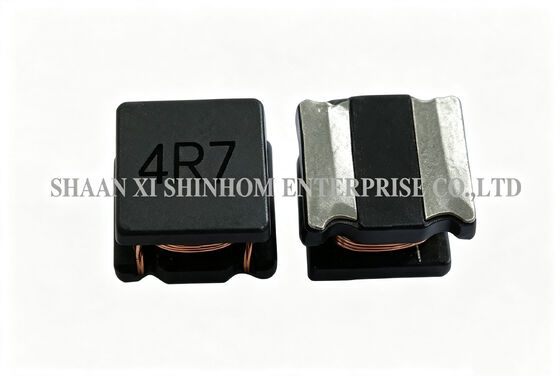

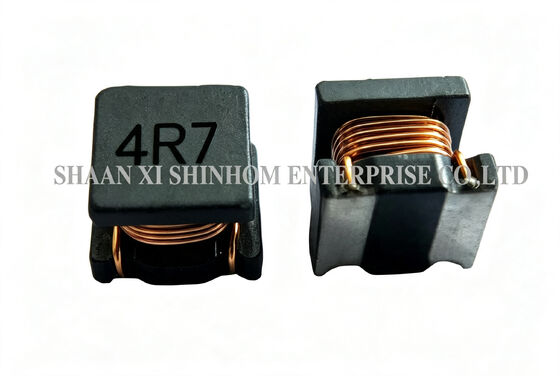

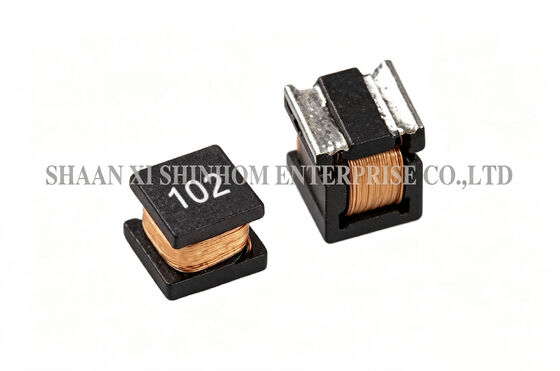

High Frequency Ferrite SMD Power Inductor LQH Series for Wireless Communications and Networking Systems

The LQH series high-current unshielded SMD power inductor uses a ferrite core and high-frequency design. It offers low DCR and high rated current, providing excellent Q factor and self-resonant frequency (SRF) in high-frequency applications. The product offers E12 series standard inductance values and multiple package size options to suit different design requirements. Excellent temperature stability ensures stable electrical performance across a wide temperature range. Operating temperature: -25°C to +85°C. Storage temperature: -55°C to +125°C. Soldering methods support both wave soldering and reflow soldering. It is widely used in modems, PDP/LCD TV converters, mobile wireless devices, cordless phones, car radios, GPS, wireless communication equipment, network systems, xDSL filters, and computer peripherals.

• Ferrite Core
• High Frequency Design
• Lower DCR permits High Idc
• Available in E12 series
• Excellent Q SRF Values
• Lead free versions
• RoHS compliant
• Excellent Thermal Stability

• Modems PDP. LCD TVs convertor
• Mobile Radios DC/DC convertor
• Cordless Telephones Car radios
• Global Positioning Systems
• Wireless Communications Equipment
• Networking System,xDSL Filter
• Computer Products and Peripherals

• Inductance Testing: HP4291A,HP16193A,HP4286A or equivalent
• RDC:QuadTech 1880 Milliohmmeter
• Q- HP4342A
• SRF-HP4191A
• Rated Current L value drop10%typ.at IDCagainst its initial value
• Temperature rise 40℃ Max Reference ambient temperature
• Solderability: 75% of the terminal electrode shall be covered
• Soldering Methods: Wave,Reflow
• Operating Temperature:-25℃ to +85℃
• Storage Temperature: -55℃ to +125℃

Note: Product specifications can be customized.
