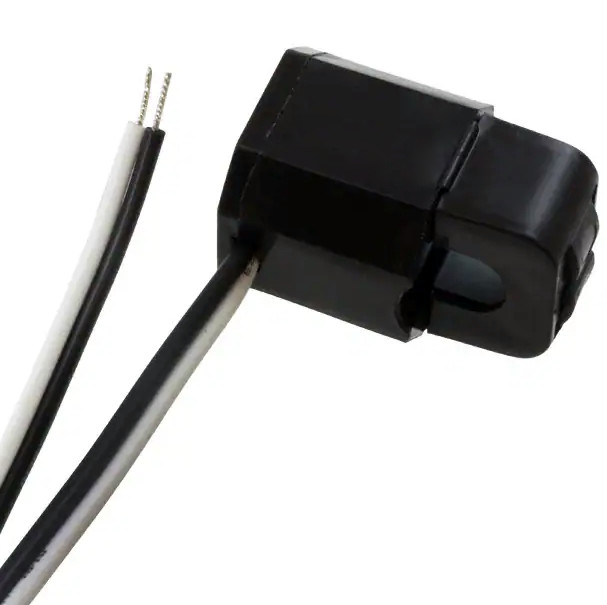

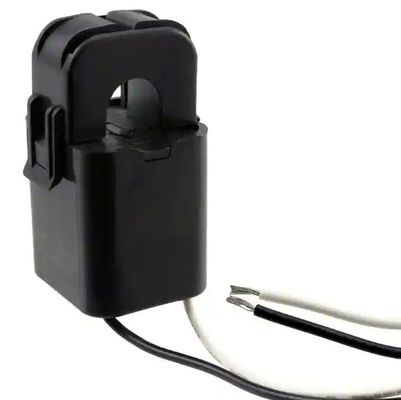

600A Permalloy Split Core Current Transformer 1.0 Class

600A Permalloy Split Core Current Transformer 1.0 Class
600A Permalloy Split Core Current Transformer 1.0 Class 600A Permalloy Split Core Current Transformer 1.0 Class 600A Permalloy Split Core Current Transformer 1.0 Class

Large Image :  600A Permalloy Split Core Current Transformer 1.0 Class Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACST Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Current Range: 5~600A Output: 0-500mA Or 0.333VAC
Class: 0.5、1.0 Case: Plastic
Customizable: Yes Coil: Permalloy Core
High Light:

Permalloy Split Core Current Transformer

,

600A Split Core Current Transformer

,

1.0 Class Split Core Current Transformer

Low voltage 5A~600A Input 333mV 500mV Output Split Coil Current Transformer,High Accuracy
         Split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easier and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary

Features:

  • The structure of the self-locking, safe, easy to install, portable
  • Wide inner window, allowing clamping of big cables or bus-bars
  • Wide range of sizes to accommodate all the existing installations
  • Isolated plastic case recognized according to UL94-V0
  • Wires plugs, Audio plugs, Power plugs and so on five kinds of plugs


Applications:

  • Current measurement, monitoring and protection for electrical wiring and equipment.
  • Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation – control system.
  • Current, power and energy monitoring device.
  • Relay protection device.


Mechanical Parameter



Electrical ParameterMechanical Parameter
Frequency50-2KHzCasePA/UL94-V0
Rated Input5A-200ABobbinPBT
Measuring range10%In-120%InCoreSilicon steel
Rated Output0.333V(AC)or 0-500mAInternal structureEpoxy
Ratio≤ ± 1.0%ConstructionTie
Phase angle≤ ±60minOperation Temp-25oC~+75oC
Dielectric strangth2.5KV/1mA/1minOperating Humidity≤85%
Insulation ResistanceDC500V/100MΩ minOutput ConnectionUL1015 20AWG Wire2.5m



MODELACST
Current Ratio300A/100mA400A/40mA500A/50mA600A/60mA300~600A/0.333V
Primary Current300A400A500A600A300~600A
Max.Current360A480A600A720A720A
Output100mA40mA50mA60mA333mV
Load Resistance50Ω/
Class0.5/1.0
Turns Ratio3000:110000:110000:110000:1/
Protection Level7.5V0-P7.5V0-P7.5V0-P7.5V0-P7.5V0-P
Insulation CategoryCATIII
Operating Condition-20℃~+50℃,≤85%RH,No condensation,IN-house&Any direction installable
Storage Condition-30℃~+50℃,≤85%RH,No condensation

Note: The Current Ratio above are common type, that's ok to customise the ration according to

customers' requirement.


Notes: Product specifications can be customized
