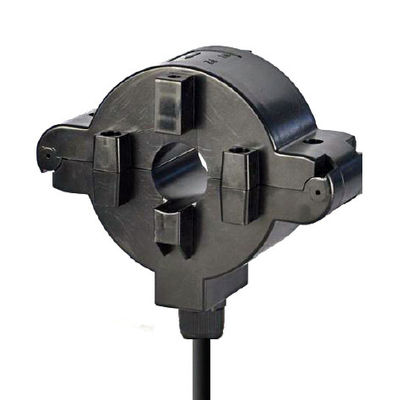

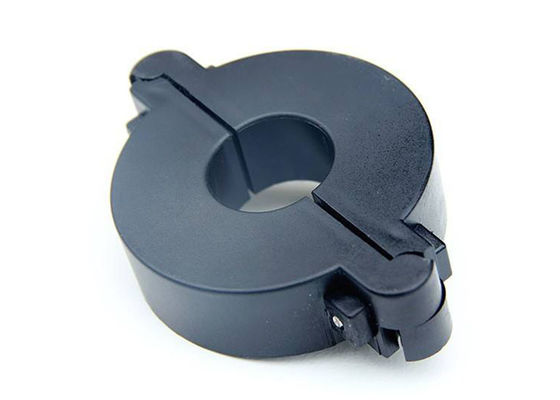

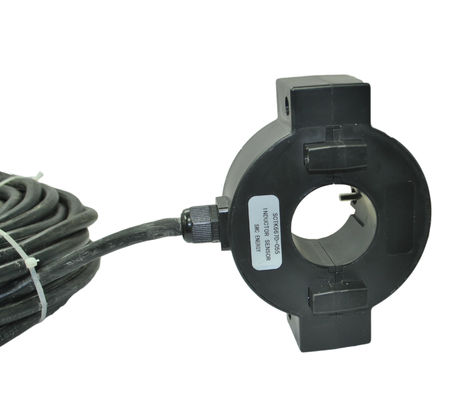

SCTK667D Series 300A/5A Low Voltage Toroidal Split Core Current Sensor


The split-core current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. Apply to current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors,lighting, air compressor,heating and ventilation system, air - condition equipment and automation control system. Current , power and energy monitoring device. Relay protection device.

Features:

  • Test hole series size clamp leaker AC current transformer
  • Wide inner window, allowing clamping of big cables or bus-bars
  • Test range: 0 to 300A AC input, output of 0 to 5A
  • Suitable for single-phase electricity meter as well as anti-tampering electricity meter
  • Wide range of sizes to accommodate all the existing installations
  • Various mechanical dimensions, highly custom-tailored
  • It can save time and the installation costs.

Electrical Parameter

Frequency50-60Hz
Rated Input5A-300A
Measuring range1%In-120%In
Rated Output0-5A
Ratio≤± 0.1%
Phase angle≤ ±30min
Dielectric strength2.5KV/1mA/1min
Insulation ResistanceDC500V/100MΩmin


Mechanical Parameter

CasePC /UL94-V0
BobbinPC
CorePermalloy
Internal structureEpoxy
ConstructionTie
Operating Temp-25℃~+75℃
Operating Humidity≤85%
Output ConnectionUL1015 22AWG Wire(twinsted wire) 2.5m




Type selection

P/N

Rated Input

(A)

Output (A)AccuracyWindow Dimensions(mm)
SCTK667D-025

50-400A

1A/5A

0.5,1.0,3.0

25

SCTK667D-032

100-630A

1A/5A

0.5,1.0,3.0

32

SCTK667D-045

100-1000A

1A/5A

0.5,1.0,3.0

45

SCTK667D-055

100-1200A

1A/5A

0.5,1.0,3.0

55

SCTK667D-065

100-1500A

1A/5A

0.5,1.0,3.0

65

SCTK667D-080200-2000A1A/5A0.5,1.0,3.080
SCTK667D-100500-3000A1A/5A0.5,1.0,3.0100


AC 300A Toroidal Split Core Current Sensor For Energy Monitoring 0
Notes: Product specifications can be customized
