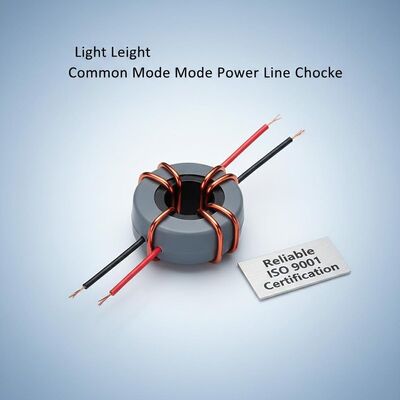

Light Weight Common Mode Power Line Choke with ISO 9001 Certification and 10KHz Test Frequency

5000PCS
MOQ
Negotiation
Price
Light Weight Common Mode Power Line Choke with ISO 9001 Certification and 10KHz Test Frequency
Features Gallery Product Description Chat Now
Features
Specifications
Winding: Common Mode
Current: Up To 18A
Nature Of Operation: Choke Coil
Transport Package: Carton/Tube
Specification: RoHS, ISO9001
Test Frequency: 10KHz
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Light Weight Common Mode Power Line Choke with ISO 9001 Certification
Low Loss Toroidal Common Mode Choke / Toroidal Core Power Inductor / Magnetic Inductors
Key Features
  • Separated windings for minimum interwinding capacitance
  • Single layer windings for highest common mode impedance over the widest frequency range
  • Suitable for 50Hz to 500 KHz
  • Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
  • All materials used are UL94-VO recognized
  • Operating temperature: -55ºC to +105ºC
  • Available in either vertical or horizontal mount
  • Available in vertical header mount for ease in PCB assembly
  • Easy FR-4 board mounting with good vibration resistance
Applications
  • Low Frequency AC Reactor
  • Solar Power System
  • Power Conditioning System
  • Wind Power System
  • Automatic Drive Machine
  • Induction Heater
  • Welding Machine
  • Paper Industries
  • RFI Suppression Choke
  • DC/DC converters
  • IP and OP devices
Technical Specifications
  • Inductance tolerance: +50% -30%
  • Max operating voltage: 250V at 40℃
  • IDC Max: rating AC/DC current A @40℃
  • Hi-Pot 2500Vac winding to winding 3S
  • Inductance Testing: 10KHz 0.1V HP4284A
  • RDC: QuadTech 1880 Milliohmmeter
  • Surge current Max 10ms: 20X IDC
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃
Light Weight Common Mode Power Line Choke with ISO 9001 Certification and 10KHz Test Frequency 0
Product specifications can be customized to meet specific requirements.
