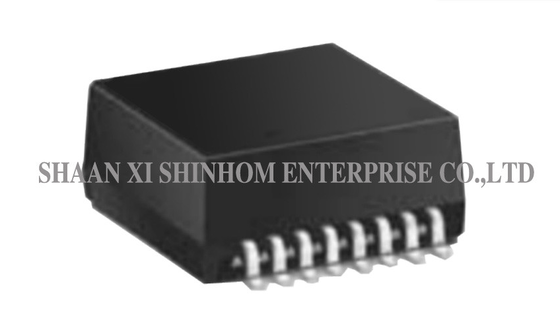

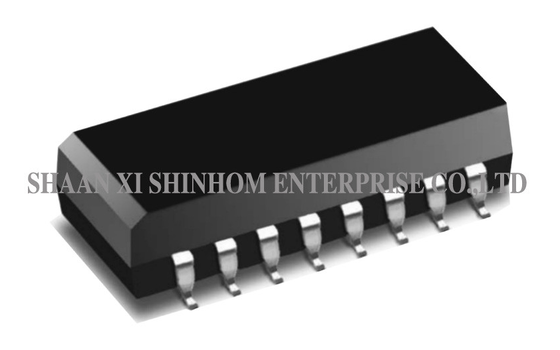

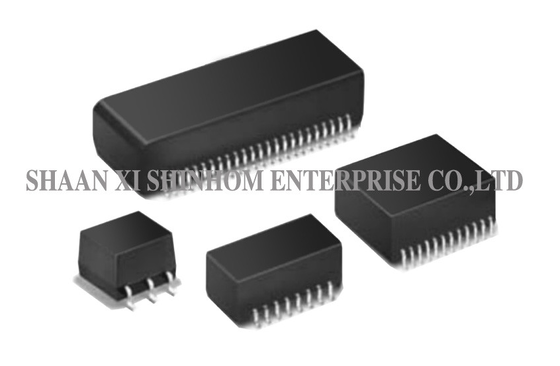

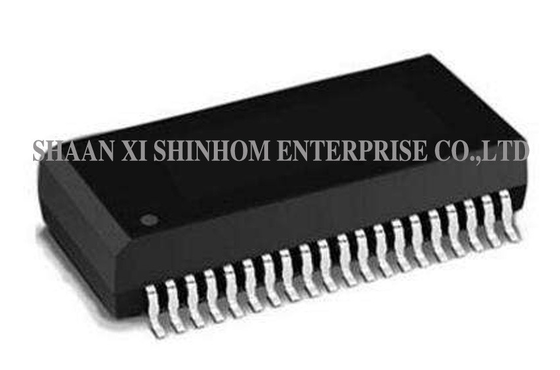

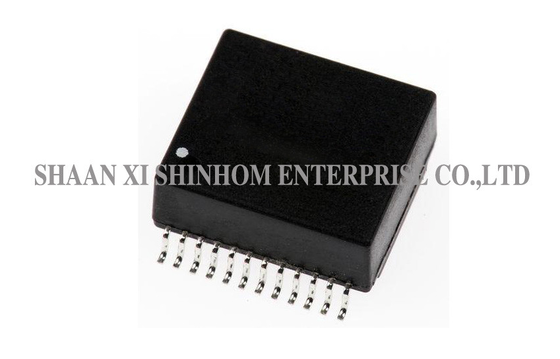

10/100Base-TX LAN Magnetics Module LAN-500 Series for Laptops and Embedded Networking

LAN-500 Series Pcmcia 10/100 Base-Tx LAN Magnetics modules, Isolation LAN Transformer

The LAN-500 series PCMCIA 10/100Base-TX network magnetic module is designed for mobile network devices and embedded system applications, complying with the IEEE802.3 standard. Open-circuit inductance: 350µH minimum. Isolation voltage: 1500VRMS. The PCMCIA-compatible design is suitable for laptop PC cards, PCMCIA network adapters, and various embedded network devices. It is widely used in laptops, PC card network adapters, industrial embedded systems, and mobile communication equipment.

FEATURES

• IEEE 802.3 Compliant
• PCMCIA
• Primary OCL Tx & Rx: 350μH Min @ Idc=8mA
• Hipot: 1500 VRMS
• Soldering methods:Wave,Reflow
• Operating Temperature:0℃ to 70℃
• Storage Temperature:-55℃ to 125℃

Applications

• Laptop PCMCIA network adapters
• PC Card Ethernet interfaces
• Embedded network systems
• Mobile network devices
• Industrial embedded systems
• Portable network devices
• Communication modules
• Wireless Access Points (AP)

FAQ

Q: What are the characteristics of the PCMCIA interface magnetic module?

A: The PCMCIA (Personal Computer Memory Card International Association) interface magnetic module is specifically designed for PC cards and mobile devices. It features a thin and compact form factor, making it suitable for laptop PC cards and embedded network applications.

Q: Which standards does this product comply with?

A: This series complies with the IEEE802.3 Ethernet standard, suitable for 10/100Base-TX network applications, ensuring compatibility and reliability in network communication.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
