1000 Base-T Magnetics Module LAN-1000 Series for Switches and Routers

5000PCS
MOQ
Negotiation
Price
1000 Base-T Magnetics Module LAN-1000 Series for Switches and Routers
Features Gallery Product Description Chat Now
Features
Specifications
Turns Ratio: 1:1
Insertion Loss: 1.0dB Max @1-100MHz
OCL: 350uH Min. 8mA DC Bias(line Side)
Speed: 1000Base-T
Hi-pot: 1500Vrms
Installation: SMT
Highlight:

1000 Base-T LAN magnetics module

,

LAN-1000 Series Ethernet transformer

,

Ethernet LAN module for switches
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LAN-1000
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

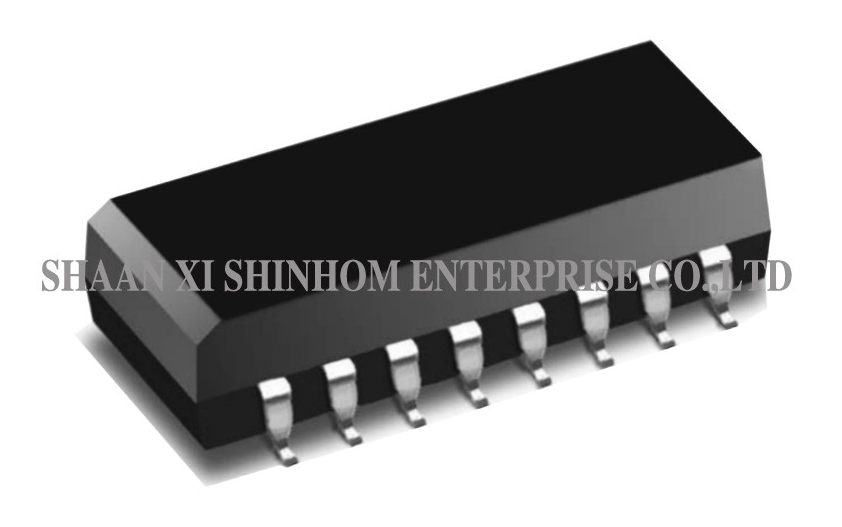

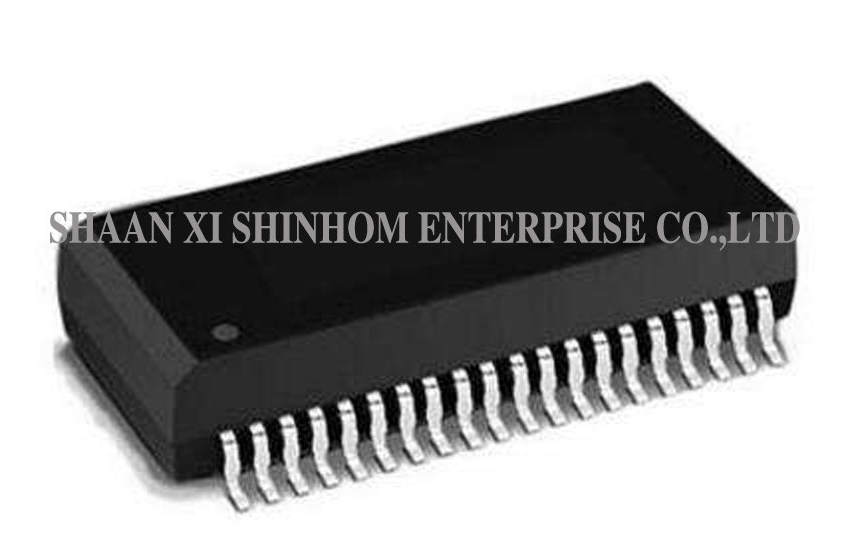

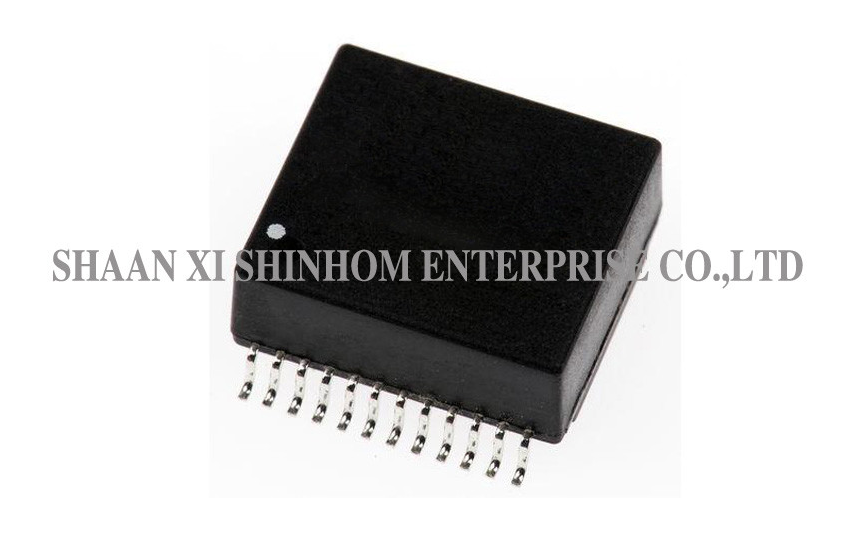

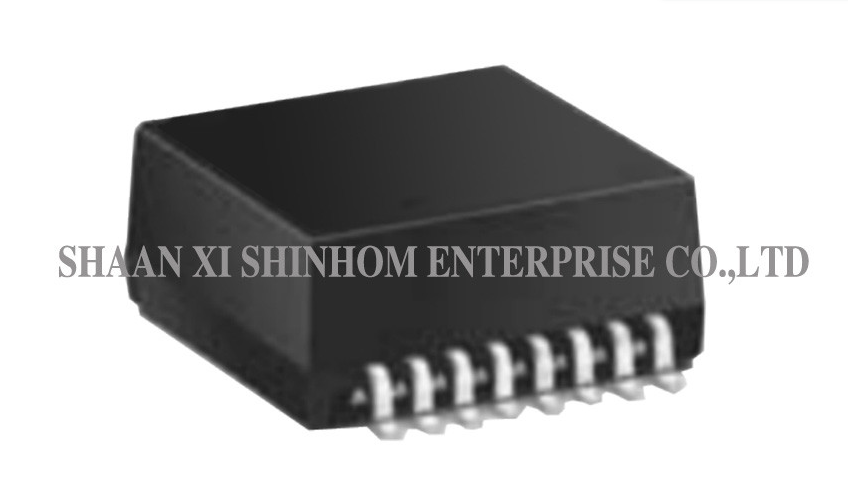

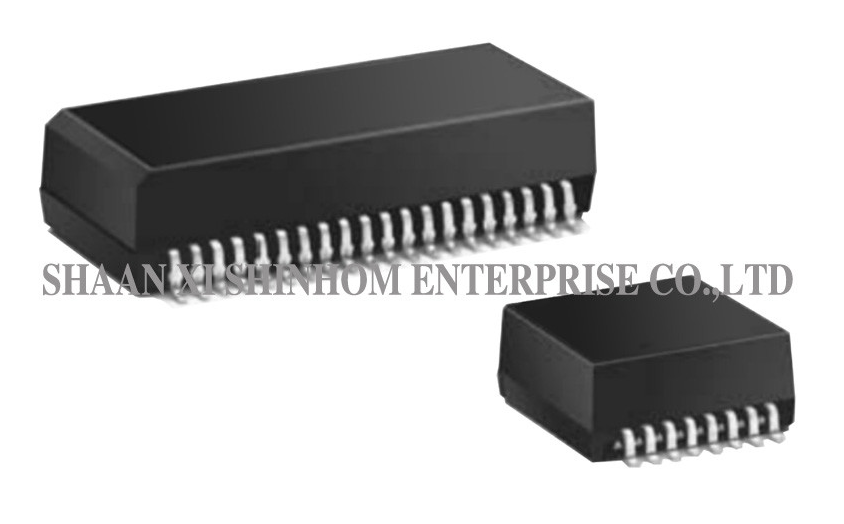

LAN-1000 Series 1000 Base-T Magnetics modules, Ethernet Lan Electrical Transformer,Connector SMT Type POE+

The LAN-1000 series Gigabit Ethernet magnetic module is designed for 1000 Base-T network applications. It supports full-duplex communication and PoE+ power supply functionality. The product uses a 1:1 turns ratio and complies with the IEEE802.3 standard. Insertion loss is ≤1.0dB (1-100MHz) . Open-circuit inductance is 350µH (@8mA bias) . Isolation voltage is 1500VRMS. The surface-mount package supports both wave soldering and reflow soldering processes. It is widely used in Gigabit Ethernet switches, routers, network interface cards, PoE+ power supply devices, and industrial network equipment.

FEATURES

  • 1:1 Turns Ratio
  • Full Duplex Compatible
  • IEEE 802.3 Compliant
  • Insertion Loss: 1.0dB Max @ 1-100 Mhz
  • OCL:350μH Min 8mA DC bias (line side)
  • Hi-pot: 1500 VRMS
  • Soldering methods:Wave,Reflow
  • Operating Temperature:0℃ to 70℃
  • Storage Temperature:-55℃ to 125℃

Applications

  • Gigabit Ethernet switches
  • Network routers
  • Network Interface Cards (NIC)
  • PoE+ power supply devices
  • Network cameras
  • Wireless Access Points (AP)
  • Industrial Ethernet equipment
  • Embedded network modules
1000 Base-T Magnetics Module LAN-1000 Series for Switches and Routers

We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

  • Inductors
  • High Frequency Transformers
  • Video & Audio Isolation Transformers
  • RF& Balun Transformers
  • Current Sensor Transformers
  • Lamination Power Transformers
  • Broadband Transformers
  • Encapsulated Transformers
  • Toroidal Transformers
  • EMI-filter
  • Common Mode Chokes
  • Telecom Magnetics
  • Ferrite Cores and Bobbins
  • Other Magnetics

FAQ

Q: What does PoE+ compatibility mean?

A: PoE+ (IEEE802.3at) compatibility means the transformer supports simultaneous power and data transmission over Ethernet cables, providing up to 30W of power. It is suitable for network devices that require higher power supply.

Q: What is the open-circuit inductance (OCL) parameter of this product?

A: The open-circuit inductance is 350µH minimum (@8mA bias current) , ensuring signal transmission integrity and common-mode rejection capability under typical operating conditions, meeting Gigabit Ethernet performance requirements.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
