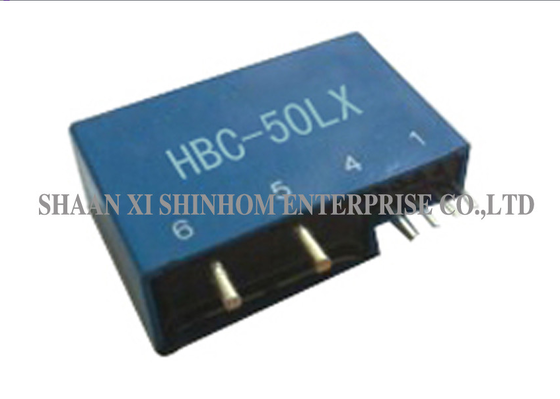

HBC-LX Series Closed-Loop Hall Effect Current Sensor

The HBC-LX series closed-loop Hall effect current sensor uses a closed-loop (compensation) principle, providing electrical isolation between the primary and secondary circuits. It accurately measures DC, AC, or pulse currents with a measuring range of 0-75A. The product has a supply voltage of DC +5.0V. It offers high accuracy, excellent linearity, low temperature drift, and high external interference rejection. It features optimised response time, no insertion loss, low power consumption, easy installation, and customisation support. It is widely used in inverters, UPS, photovoltaic current sensing, wind power current sensing, automotive drive-by-wire applications, household appliance frequency conversion, new energy combiner box measurement, and EV charging equipment current sensing.

Features
  • Measuring range – 0-75A
  • Supply voltage – DC +5.0V
  • Measuring principle – closed-loop Hall effect
  • Isolation – electrical isolation between primary and secondary
  • Accuracy – high accuracy
  • Linearity – excellent
  • Temperature drift – low
  • Anti-interference capability – high
Applications
  • Inverter current sensing
  • UPS uninterruptible power supplies
  • Photovoltaic (PV) current sensing
  • Wind power current sensing
  • EV charging equipment current sensing
  • Hybrid battery pack current sensing
  • Household appliance frequency conversion
  • New energy combiner box measurement
ELECTRICAL DATA
HBC-05LX HBC-10LX HBC-15LX HBC-20LX
HBC-25LX HBC-30LX HBC-50LX HBC-75LX
Rated input current 5 10 15 20 25 30 50 75 A
Test current range 10 20 30 40 50 60 100 150 A
Turns ratio 4:1000 3:1500 2:1500 2:2000 1:1250 1:1500 1:2500 1:3750
Rated output voltage 4±0.5% V
Supply voltage ±15±5% V
Zero offset current ≤±0.04 V
Consumption current ≤±18±20 mA
Linearity ≤±0.2 %FS
Response time ＜1 µs
Output Thermal drift ＜±0.02 %/℃
Zero Thermal drift ≤±1 mV/℃
Insulation voltage 50(60)HZ,1min, 2.5 KV
insulating strength ＞1000 MΩ
Operating temperature -40～+85 ℃
Storage temperature -40～+105 ℃

Hall Effect Current Sensor HBC-LX Series for Battery Management and Household Appliance Frequency Conversion

Notes: Product specifications can be customized
