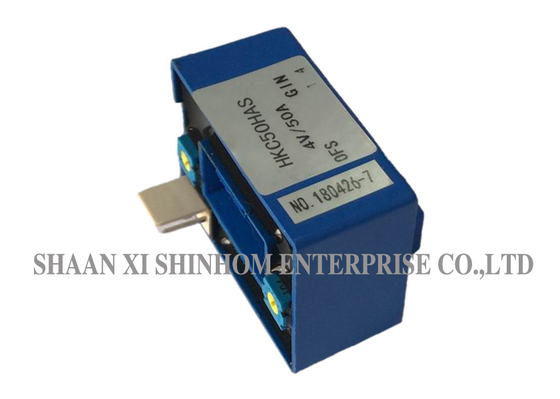

Hall Effect Current Sensor HKC-HAS Series 600A for Welding Power Supplies and Variable Frequency Drives

5000PCS
MOQ
Negotiation
Price
Hall Effect Current Sensor HKC-HAS Series 600A for Welding Power Supplies and Variable Frequency Drives
Features Gallery Product Description Chat Now
Features
Specifications
Supply Voltage: ±15V (±5%)
Rated Input: 0A~600A
Rated Output: 4.0V ±1%
Usage: Hall Sensor
Specification: IEC 6044-1
Customized: YES
Highlight:

Hall Effect Current Sensor 600A

,

Hall Effect Sensor for welding power supplies

,

Current Sensor for variable frequency drives
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HKC-HAS
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description
HKC-HAS Series Current Sensor, Hall current sensor with 0 to 600A Operating Current and 4V output

The HKC-HAS series Hall effect current sensor is based on the Hall effect measurement principle, providing electrical isolation between the primary and secondary circuits. It accurately measures DC, AC, or pulse currents with a measuring range of 0-600A. The product has a supply voltage of ±15V (±5%) and a rated output voltage of 4.0V±1%. It offers high accuracy and easy installation. It is widely used in AC variable speed drives, DC motor drive static converters, variable frequency drives, welding power supplies, battery-powered applications, UPS, and switching power supplies.

Features:
  • Operating current: 0 to 600A
  • Power supply: ±15V (±5%)
  • Rated output voltage: 4.0V ±1%
  • Mount easily
  • High accuracy grade
Applications:
  • AC variable speed drives
  • Static converters for DC motor drives
  • Variable speed drives
  • Power supplies for welding applications
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
ELECTRICAL DATA:
HKC50HAS HKC100HAS HKC200HAS HKC300HAS HKC400HAS HKC500HAS HKC600HAS
Rated input current(IP) 50 100 200 300 400 500 600 A
Current range(IPN) 150 300 600 900 900 900 900 A
Output voltage(VOUT) 1* IP 4±1% V
Supply voltage ±15 ±5% V
Offset voltage 25 20 mV
Magnetic offset voltage ±30 ±25 mV
Offset voltage Drift ≤±2.0 ≤±1.0 mV/℃
Output voltage Drift ≤±0.1%/℃ VOUT
Linearity ≤1 %FS
Response time ≤3 μS
Insulation voltage 50HZ,1min 2.5 KV
Operating Temperature -20～+85 ℃
Storage Temperature -40～+85 ℃
Hall Effect Current Sensor HKC-HAS Series 600A for Welding Power Supplies and Variable Frequency Drives

Notes: Product specifications can be customized

FAQ
Q: What is the working principle of a Hall effect current sensor?

A: The Hall effect current sensor works based on the Hall effect principle. The magnetic field generated by the measured current is detected by the Hall element, which outputs a voltage signal proportional to the magnetic field strength. Electrical isolation between the primary and secondary is achieved through magnetic circuit coupling, requiring no direct electrical connection, ensuring safety and reliability.

Q: What types of current can this sensor measure?

A: It can accurately measure DC, AC, and pulse currents, suitable for various complex current waveform measurement requirements.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
