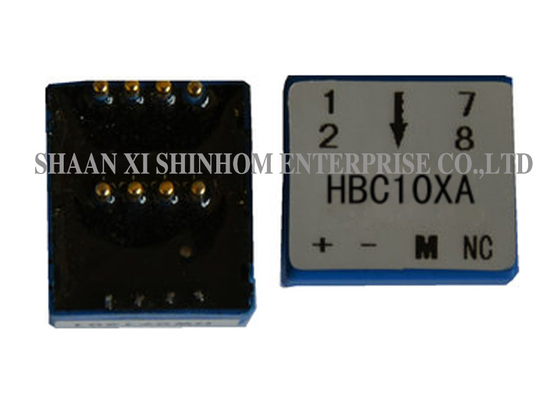

Hall Effect Current Sensor HBC-X Series 50A Galvanic Isolation for SMPS and Variable Frequency Drives

Negotiation
MOQ
Negotiation
Price
Hall Effect Current Sensor HBC-X Series 50A Galvanic Isolation for SMPS and Variable Frequency Drives
Features Gallery Product Description Chat Now
Features
Specifications
Supply Voltage: ±15V ±5%
Rated Input: 0A ~ 50A
Rated Output: 10mA ±0.5%,25mA ±0.5%,
Installation: PCB Mounting
Offset Current: ≤±0.25mA
Customized: YES
Highlight:

Hall Effect Current Sensor 50A

,

Galvanic Isolation Current Sensor

,

HBC-X Series SMPS Sensor
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HBC-X
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

The HBC-X series closed-loop Hall effect current sensor uses a closed-loop (compensation) principle, providing electrical isolation between the primary and secondary circuits. It accurately measures DC, AC, or pulse currents with a measuring range of 0-50A. The product has a supply voltage of DC ±15V±5%. The epoxy potted housing provides excellent moisture-proof, dust-proof, and insulation protection. It offers high accuracy, excellent linearity, low temperature drift, and high external interference rejection. It features optimised response time, no insertion loss, low power consumption, easy installation, and customisation support. It is widely used in inverters, UPS, photovoltaic current sensing, switching power supplies, variable frequency drives, and various new energy applications.

Features

  • Measuring range – 0-50A
  • Supply voltage – DC ±15V ±5%
  • Measuring principle – closed-loop Hall effect
  • Isolation – electrical isolation between primary and secondary
  • Potting process – epoxy resin
  • Accuracy – high accuracy
  • Linearity – excellent
  • Measurement type – DC / AC / pulse

Applications

  • Inverter applications
  • AC/DC variable-speed drive
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Photovoltaic (PV) current applications
  • New Energy Combiner Box Measurement
  • Automobile By-wire application
  • Electric vehicle charging equipment current sensing
  • Household appliance frequency conversion Electromagnetic water heater current measurement

ELECTRICAL DATA:

HBC10XA HBC20XA HBC30XA HBC50XA
Rated input current 10 20 30 50 A
Test current range 20 40 60 100 A
Turns ratio 1000 1000 1500 2500 T
Sec winding resistance 60 60 100 150 Ω
Rated output current 10±0.5% 20±0.5% 20±0.5% 20±0.5% mA
Supply voltage ±15±5% V
Offset current ≤±0.25 mA
Offset current Drift -40～+85℃ ≤±0.5 mA
Linearity ≤±0.2 %FS
Class ≤±0.7 %
di/dt ＞50 A/µS
Response time ＜1 µS
Bandwidth DC～200 KHZ
Insulation voltage 2.5 KV
Operating Temperature -40～+85 ℃
Storage Temperature -40～+105 ℃
Turns

Turns

ratio

Rated input current

IPN[A]

Rated output voltage

VOUT[V]

 Pri DCR[mΩ]

Pri inductance

[uH]
Single phase 1 ±10(±20,±30,±50) 2.5±0.625 0.05 0.025
2 ±5(±10,±15,±25) 2.5±0.625 0.20 0.1
4 ±2.5(±5,±7.5,±12.5) 2.5±0.625 1.00 0.4
three-phase 1 ±10(±20,±30) 2.5±0.625 0.05 0.025

Hall Effect Current Sensor HBC-X Series 50A Galvanic Isolation for SMPS and Variable Frequency Drives

Notes: Product specifications can be customized

FAQ

Q: What are the advantages of epoxy potting?

A: Epoxy resin potting provides excellent moisture-proof, dust-proof, and insulation protection. It ensures long-term stable operation of the sensor in various harsh environments, enhancing mechanical strength and vibration resistance.

Q: What is the supply voltage of this sensor?

A: The supply voltage is DC ±15V ±5% . The wide voltage range is suitable for various industrial power supply systems, facilitating system integration.

Q: What are the advantages of no insertion loss and low power consumption?

A: No insertion loss ensures the circuit under test is not affected by the sensor, maintaining original circuit efficiency. Low power consumption reduces self-heating of the sensor, improves long-term stability, and reduces system energy consumption.
