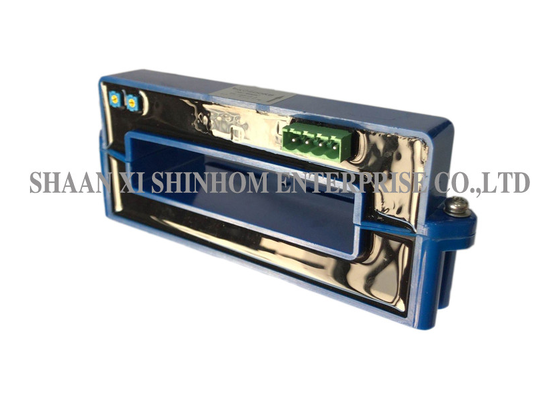

Hall Effect Current Sensor HKC-KB Series Wide Temp -40 to +105°C for SMPS and Welding Power Supplies

The HKC-KB series closed-loop Hall effect current sensor uses a closed-loop (compensation) principle, providing electrical isolation between the primary and secondary circuits. It accurately measures DC, AC, or pulse currents with a measuring range of 0-4000A. The product has a supply voltage of ±12 to ±15V (±5%) and a rated output voltage of 4.0V±1%. It offers high accuracy and easy installation. Operating temperature is -20 to +85°C, and storage temperature is -40 to +105°C. It is widely used in high-current monitoring, inverters, UPS, DC motor drives, switching power supplies, and welding power supplies.

1. Power supply: ±12～±15 (±5%)
2. Rated output voltage: 4.0V ±1%
3. Operating current: 0 to 4000A
4. Mount easily
5. High accuracy grade
6. Open loop design
7. Certification: UL 94-V0
8. RoHS Directive-compliant
9. Working (operating) temperature: -20 to +85°C
10. Storage environment temperature: -40 to +105°C

1. Switched mode power supplies (SMPS)
2. Uninterrupted power supplies (UPS)
3. SMPS switching power supply
4. Electric locomotive
5. Grid monitoring
6. Frequency control device
7. Inverter device
8. AC variable speed drives and servo motor drives
9. Static converters for DC motor drives
10. Power supplies for welding applications

1:+15V 2:-15V 3:VOUT 4:0V OFS: Zero adjustment GIN:Amplitude adjustment

Notes: Product specifications can be customized
