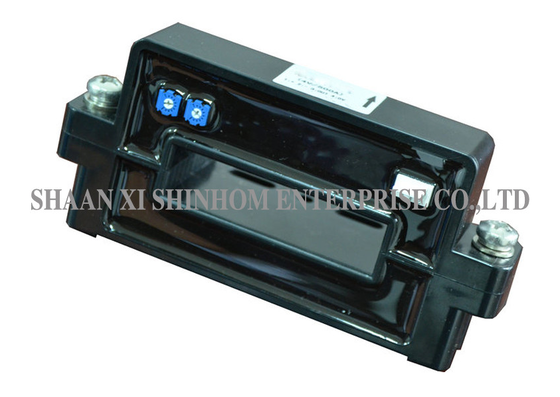

Hall Effect Current Sensor HKC-HAX Series 2000A for Current Monitoring and Feedback Control

HKC-HAX Series Hall Effect Current Sensor with 0 to 2000A Input, 4V Output, Closed loop Hall Effect Current Sensor

The HKC-HAX series open-loop Hall effect current sensor is based on the Hall effect measurement principle, providing electrical isolation between the primary and secondary circuits. It accurately measures DC, AC, or pulse currents with a measuring range of 0-2000A. The product has a supply voltage of ±15V (±5%) and a rated output voltage of 4.0V±1%. Operating temperature is -25 to +85°C, and storage temperature is -25 to +85°C. It is widely used for current signal acquisition and feedback control in current monitoring, inverters, photovoltaic power management, current cabinets, DC motor drives, and UPS servo control systems.

• Measuring range – 0-2000A
• Supply voltage – ±15V (±5%)
• Rated output voltage – 4.0V±1%
• Measuring principle – open-loop Hall effect
• Isolation – electrical isolation between primary and secondary
• Operating temperature – -25°C to +85°C
• Storage temperature – -25°C to +85°C

• Current monitoring
• Inverter current sensing
• Photovoltaic power management
• Current cabinets
• DC motor drives
• UPS servo control systems
• Current signal acquisition
• Feedback control systems

Notes: Product specifications can be customized
