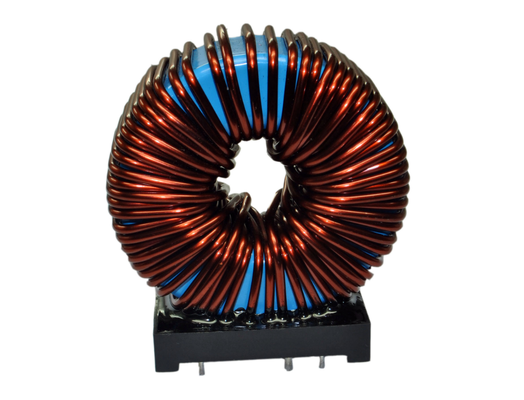

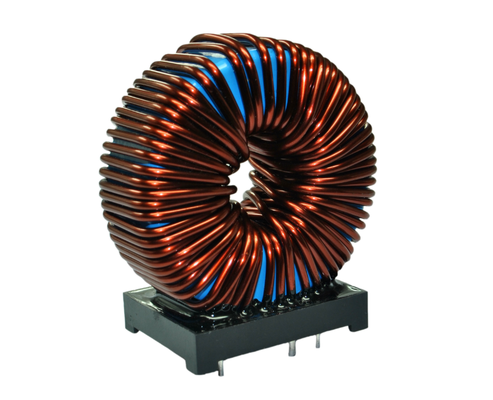

High Current Toroidal Core Power Inductor 800uH for Power Management

This toroidal power inductor is manufactured with a high-current toroidal core design, specifically developed for power management and industrial control, ensuring low DCR, high current capacity, and stable performance.The product features a robust and reliable structure with a maximum height of 65mm and a footprint of 65×45mm. It meets wide operating temperature requirements.It is suitable for power management, industrial control, and DC-DC converters. It is an ideal choice for toroidal inductor applications in power management and industrial automation.

• Power management

• Industrial control

• DC-DC converters

• Automotive electronics

• Communication equipment

• Battery-powered devices

• Industrial automation

• Electronic equipment

• Test Frequency : 1.0KHz / 0.25Vdc
• Testing Instrument : L:HP4284A, CH11025,CH3302, CH1320, CH1320S LCR METER/Rdc:CH16502, Agilent33420A MICRO OHMMETER.
• Heat Rated Current (Irms) will cause the coil temperature rise approximately,△T=40℃ without core loss.
• Saturation Current (Isat) will cause L0 to drop approximately 25%
• The part temperature (ambient + temp rise) should not exceed 125℃ under worst case operating conditions. Circuit design, component, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.
• Operating Temperature: -40℃ - +105℃.
• Storage Temperature: -40℃ - +105℃.
