Fixed Surface Mount Power Inductors Low Profile Excellent Thermal Stability

Name: Fixed Surface Mount Power Inductors Low Profile Excellent Thermal Stability
Brand: Shinhom
SKU: SDRH Series
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (161 reviews)
ISBN: 11449962

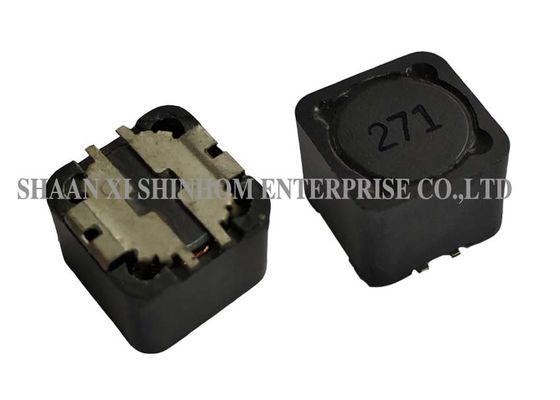

Large Image : Fixed Surface Mount Power Inductors Low Profile Excellent Thermal Stability Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	SDRH Series

Payment & Shipping Terms:

Minimum Order Quantity:	5000PCS
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Product:	Low-Profile SMD Type Shielded Inductors	Type:	Choke Inductor
Standard:	RoHS/SGS/ISO9001	Material:	Ferrite Core
Structure Of Winding:	Single Coil	Working Frequency:	High Frequency
High Light:	surface mount choke , smt power inductors

SDRH Series magnetic shielded surface mount power inductors,Fixed Inductors SMD Power Inductor Shielded

FEATURES:

·Shiedlded Structure
·Flat-top for pick and place
·Low Resistance Allow high Current
·Excellent Thermal Stability
·Low profile

COMMON APPLCATIONS:

·Ideal for a variety of DC-DC converter Inductors Applications.
·DC/DC converter
·Power supplies for: porttable communication equipment
·Camcordert
·LCD,TV,PDA,PDP
·Notebook computer

TEST EQUIPMEN AND CONDITIONS:

·Inductance is measured with HP-4284A LCR meter or equivalent.
·Maximum allowable DC current is that which causes a 25% inductance reduction of the initial value, or coil temerature to rise by 40℃,whichever is smaller.(Reference ambient temperature 20℃)
·Operating temperature:-25℃~+85℃.

Fixed Surface Mount Power Inductors Low Profile Excellent Thermal Stability 0
