| Type: | Fixed Inductor | Advantage: | Micro ,saving Space ,paster |
|---|---|---|---|
| Installation: | SMD | Inductance: | 1.0uH To 150uH |
| Working Frequency: | High Frequency | Customized: | YES |
| High Light: | smd shielded power inductor,smt power inductors |
||

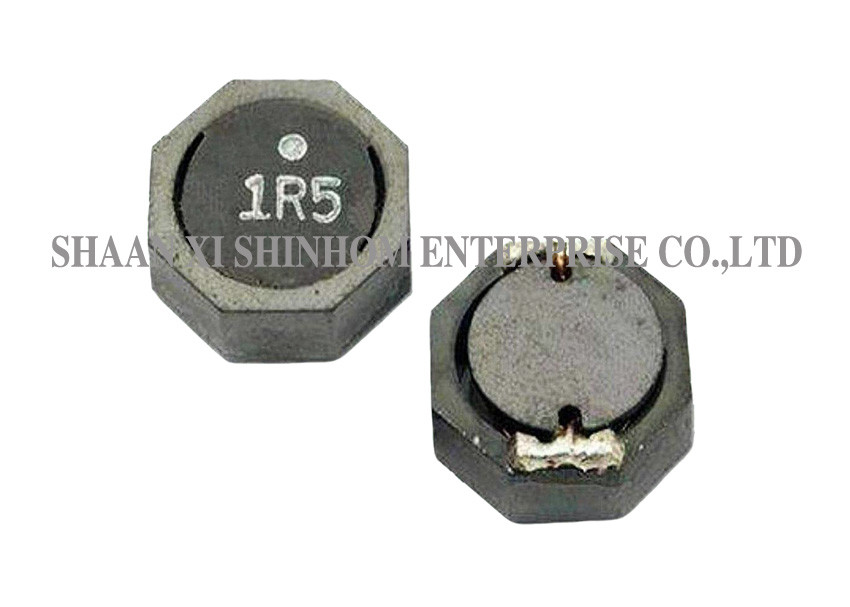

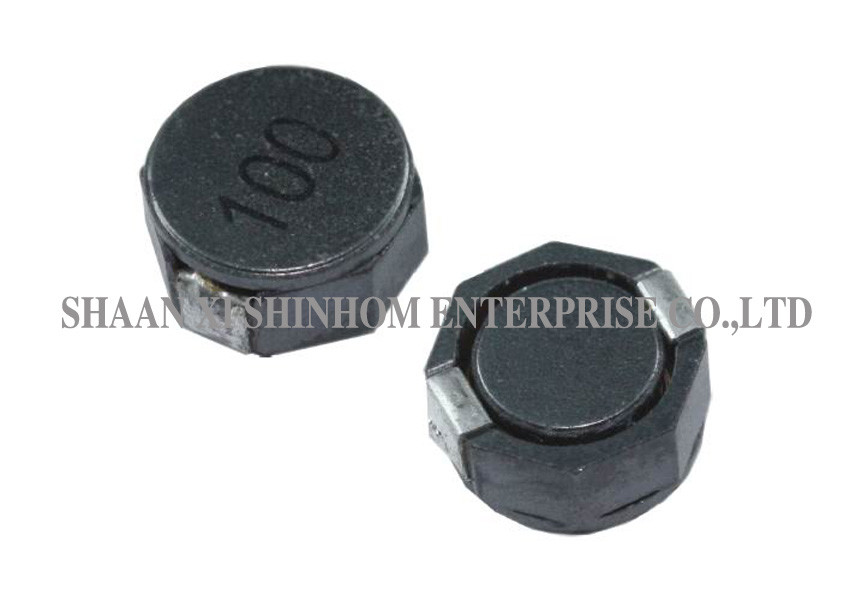

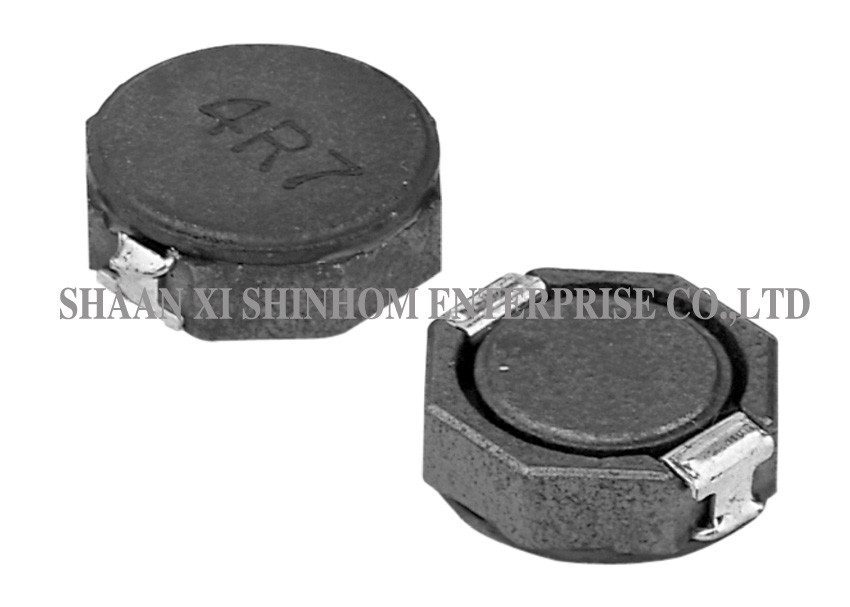

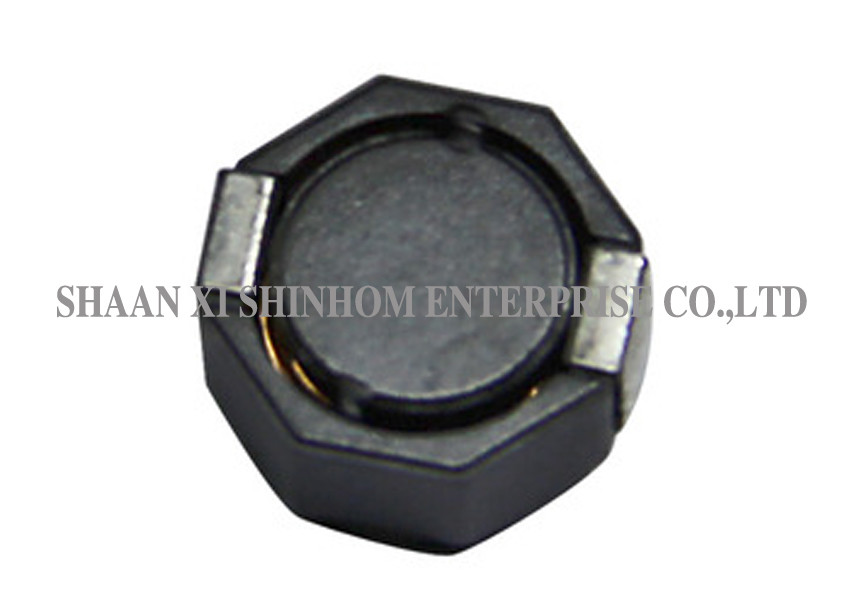

SDRH3818/5018 Series Electric Shield SMD Inductor shielded smd power inductor,factory directly
FEATURES:
• Large current up to 1.8A
• Metallization on ferrite core results in excellent shock resistance and damage-free durability
• Closed magnetic circuit design reduces leakage flux and electro magnetic interference(EMI)
• Take up less PCB real estate and save more power
APPLCATIONS:
• Mobile devices with multifunction such as adding color tv and camera, LED Lighting
• Flat-screen TVs, blue-ray disc recorders, set top boxes
• Notebooks, desktop computers, servers, graphic cards
• Portable gaming devices, personal navigation systems, personal multimedia devices
• Automotive systems, Telecomm base stations
TEST EQUIPMEN AND CONDITIONS:
·Inductor Testing: HP4284A (Equivalent acceptable)
DCR:QuadTech 1880 Milliohmmeter
IDCMax current is decreased 10% against its initial value
·Operating temperature: -40℃ to +105℃
·Storage Temperature: -40℃ to +105℃
·Solder methods: Vapor Phase,Infrared Reflow
·Resistance to soldering heat:260℃ for 10 seconds
Note: Product specifications can be customized.Custom inductance values are available.
