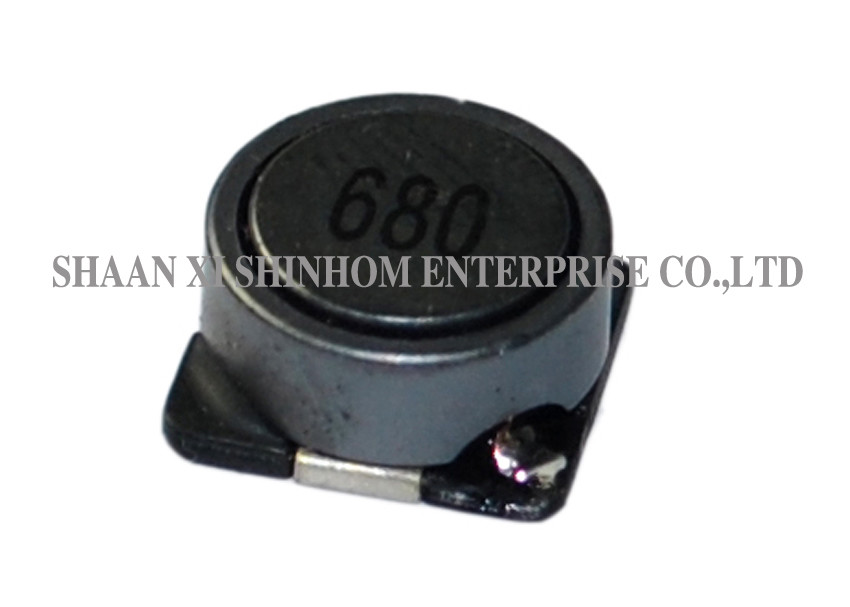

SDRH7032/7045 Series magnetic shielded surface mount power inductors,with SMD Base,Inductance range 3.3uH to 470uH
FEATURES:
· Magnetically Shielded Structure
· With Plastic Base
· Large current up to 1.9A
· Carrier tape packing use for SMT.
· High rated,low DCR,Rotundity.
· Suitable for reflow SMT Craft soldering.
· Lead free products,RoHS compliant.
COMMON APPLCATIONS:
· Notebook computer
· Battery power equipment
· DC/DC converter
· Digital camera and scanner
· CD-ROM/DVD and PDA
· Small size communication equipment
· Filtering of supply voltages
· Coupling, decoupling
· Automotive electronics
TEST EQUIPMEN AND CONDITIONS:
· Inductor Testing: HP4284A (Equivalent acceptable)
· DCR:QuadTech 1880 Milliohmmeter
· IDCMax current is decreased 10% against its initial value
· Operating temperature: -40℃ to +105℃
· Storage Temperature: -40℃ to +105℃
Note: Product specifications can be customized.
