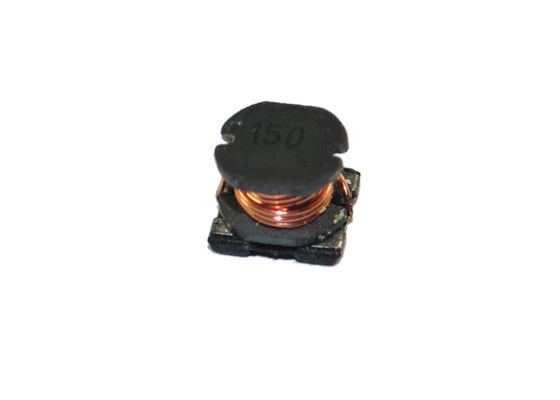

Unshielded Surface Mount Power Inductors Single Coil CDR Type

Unshielded Surface Mount Power Inductors Single Coil CDR Type
Unshielded Surface Mount Power Inductors Single Coil CDR Type Unshielded Surface Mount Power Inductors Single Coil CDR Type Unshielded Surface Mount Power Inductors Single Coil CDR Type

Large Image :  Unshielded Surface Mount Power Inductors Single Coil CDR Type Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDR Series
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Structure Of Winding: Single Coil Structure Of Magnetizer: Ferrite Coil
Shielding: Unshielded Base: Plastic Base
Nature Of Operation: Choke Coil Tolerance: ±10%,±20%
High Light:

Unshielded Surface Mount Power Inductors

,

Single Coil Surface Mount Inductors

,

CDR Type Surface Mount Inductors

SDR Series Unshielded Surface Mount Power Inductors Single Coil , CDR Type Ferrite Core Inductor With Plastic Base



FEATURES:

· Current up to 4.5A
· Larg Current
· Flat-top for Pick & Place
· Low cost





COMMON APPLICATIONS:

· Ideal for Palm-Top and Laptop DC-DC Converters
· PDA's Flash Memory
· Step-up,Step-down Converters
· Top-box





BUYING GUIDE:

  1. TEST FREQ.(L) with HP4284A and HP4285A (equivalent acceptable)
  2. 0-8.2μH(7.95MHz) 10-82μH(2.52MHz) 100-1200μH(1KHz)
  3. Toerance of inductance
  4. SDR0302 1.0-470μH±20%(M)
  5. SDR 0403 1.0-27μH±20%(M) 33-470μH±10%(K)
  6. SDR0503 1.0-2.7μH±20%(M) 33-1000μH±10(K)
  7. SDR0504 1.0-27μH±20%(M) 33-47μH±15%(L) 56-1000μH±10%(K)
  8. DCR: GW813 or QuadTech 1880 Milliohmmeter
  9. IDC Max is decreased 10% against its initial value
  10. Operating Temperature:-40℃ to+85℃
  11. Storage Temperature: -40℃ to +105℃
  12. Solder methods: Vapor Phase,Infrared Reflow
  13. Resistance to soldering heat:260℃ for 10 seconds
  14. Solvent resistance: Conforms to MIL-STD-202E

Unshielded Surface Mount Power Inductors Single Coil CDR Type 0

Unshielded Surface Mount Power Inductors Single Coil CDR Type 1

Unshielded Surface Mount Power Inductors Single Coil CDR Type 2







Note: Product specifications can be customized.
