Choke Coils Toroidal Surface Mount Power Inductors

Negotiation
MOQ
Negotiation
Price
Choke Coils Toroidal Surface Mount Power Inductors
Features Gallery Product Description Request A Quote
Features
Specifications
Inductance: 0.42uH - 100uH
Current Up To: 3A
High: 1.8mm Max
Test Frequency: 100KHz
Core: Toroidal
Core Material: Iron Or Silicon Iron-aluminum
Highlight:

Toroidal Surface Mount Power Inductors

,

Choke Coils Surface Mount Inductors

,

100KHz Surface Mount Power Inductors
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: STC0718 Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

Choke coils , Toroidal inductor,Toroidal surface mount power inductors,SMD inductor





Features:

  • RoHS compliant
  • Up to 3A Idc
  • Low Rdc
  • Small footprint
  • Ultra-low profile


Application:

  • Power applications with restricted PCB space and height, such as handheld devices, DC-DC converters and notebook computers


Notes:

  • Test frequency: 100KHz,0.1V
  • Testing Instrument : L:HP4284A, WK3260B, WK3261A
  • All test data is referenced to 25℃ ambient
  • Idc: DC current (A) that will cause an approximate △T of 40℃
  • Isat: DC current (A) that will cause Lo to drop approximately 25%
  • Operating temperature range -40℃ to +125℃ (Including temperature rise 40℃ Max)
  • Storage temperature range -40℃ to +85℃
  • UL 94V-0 packaging materials
  • J-STD-020D reflow
  • Custom inductance values available

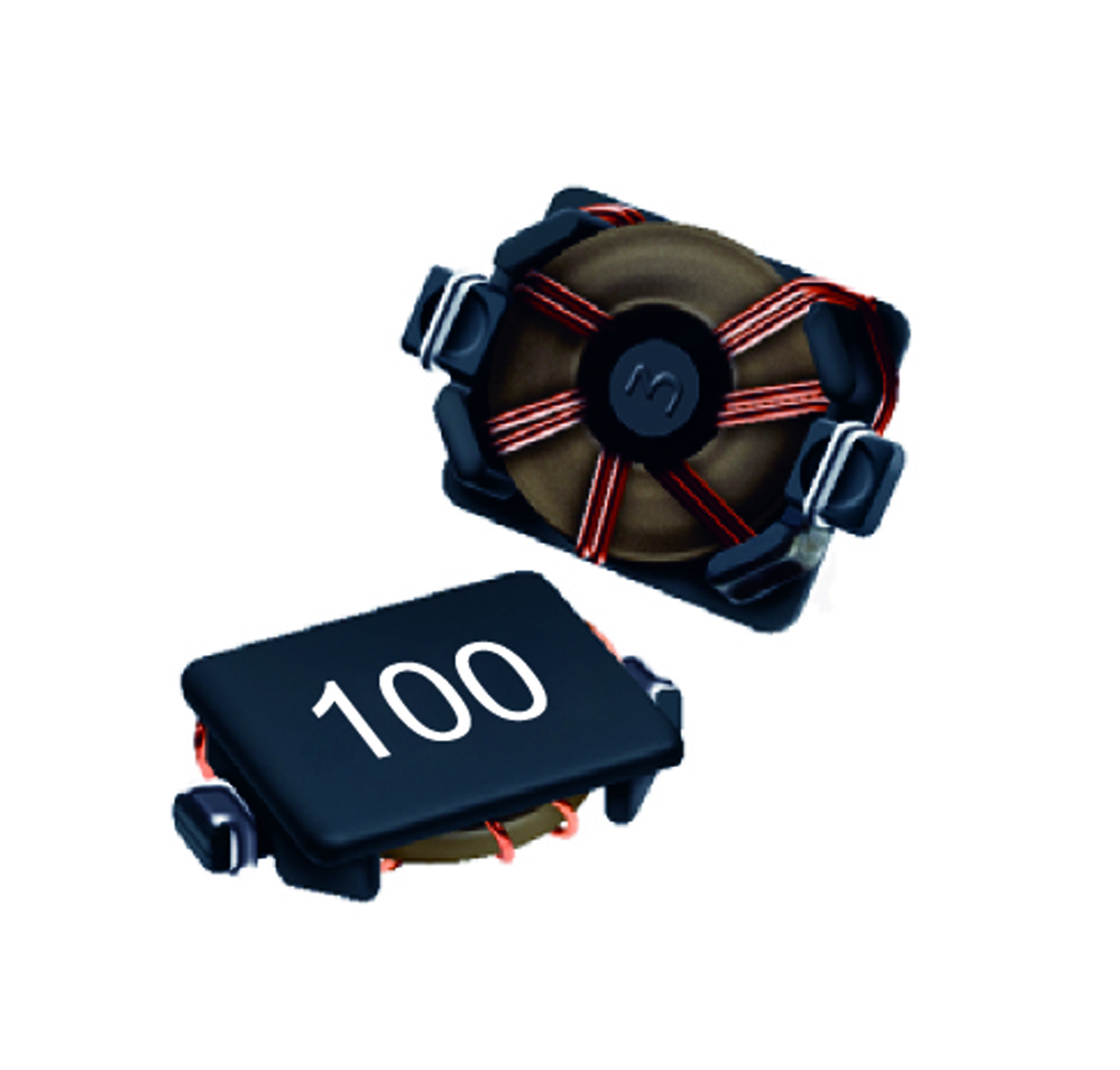

Choke Coils Toroidal Surface Mount Power Inductors 0



Note:1. K=±10%,M=±20%,N=±30%



Note: Product specifications can be customized.
