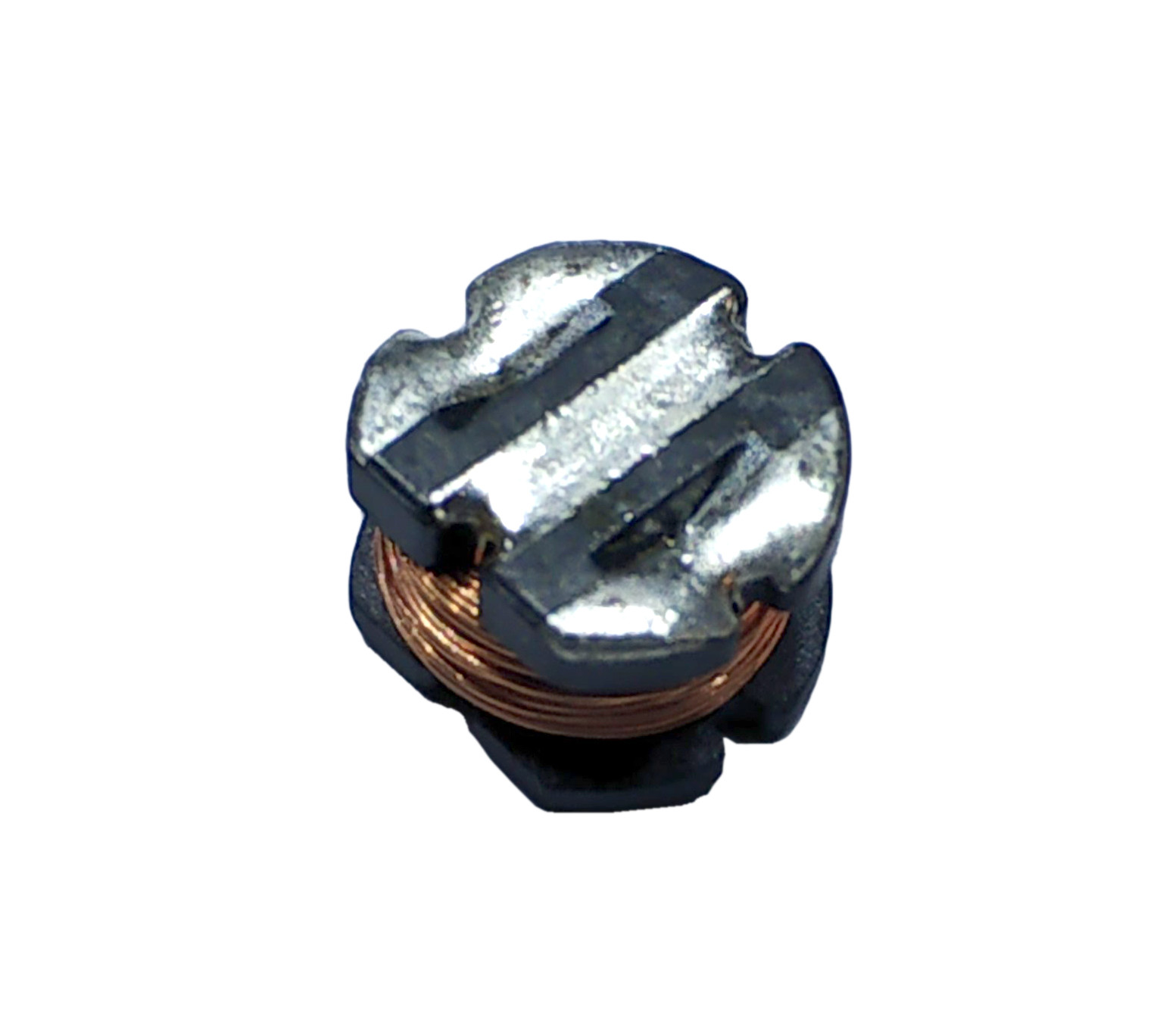

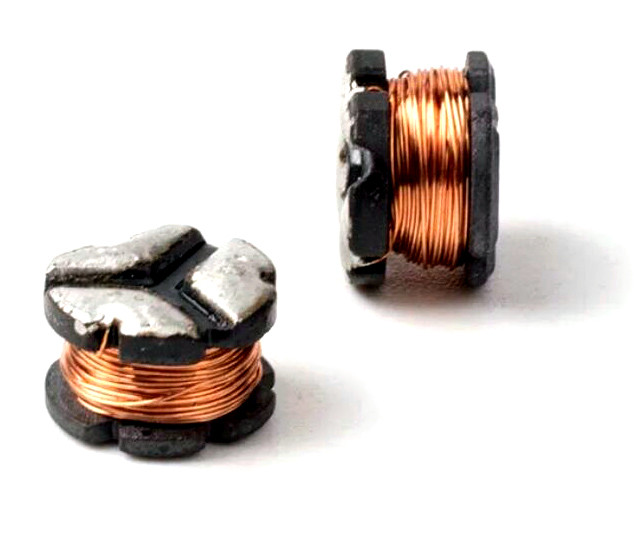

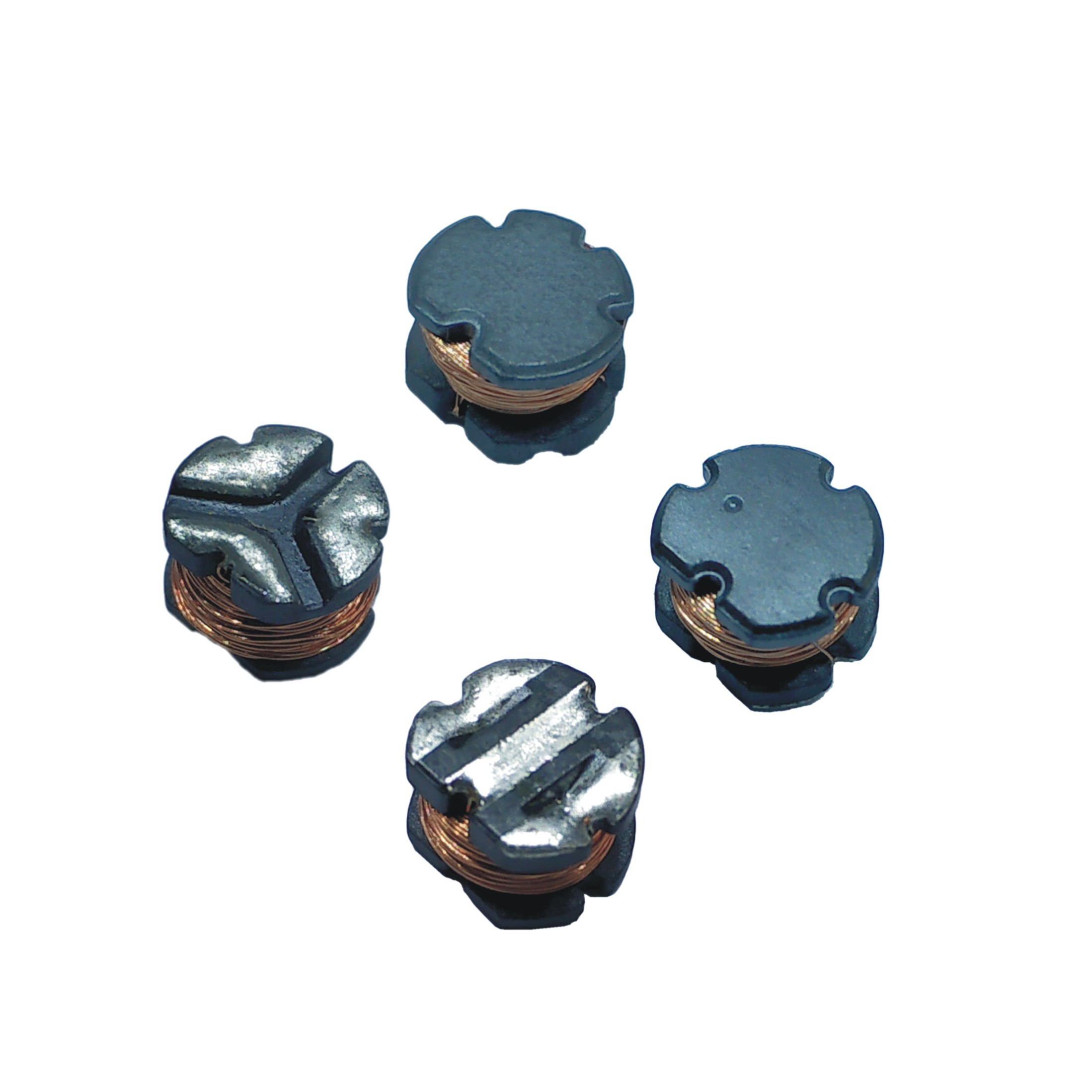

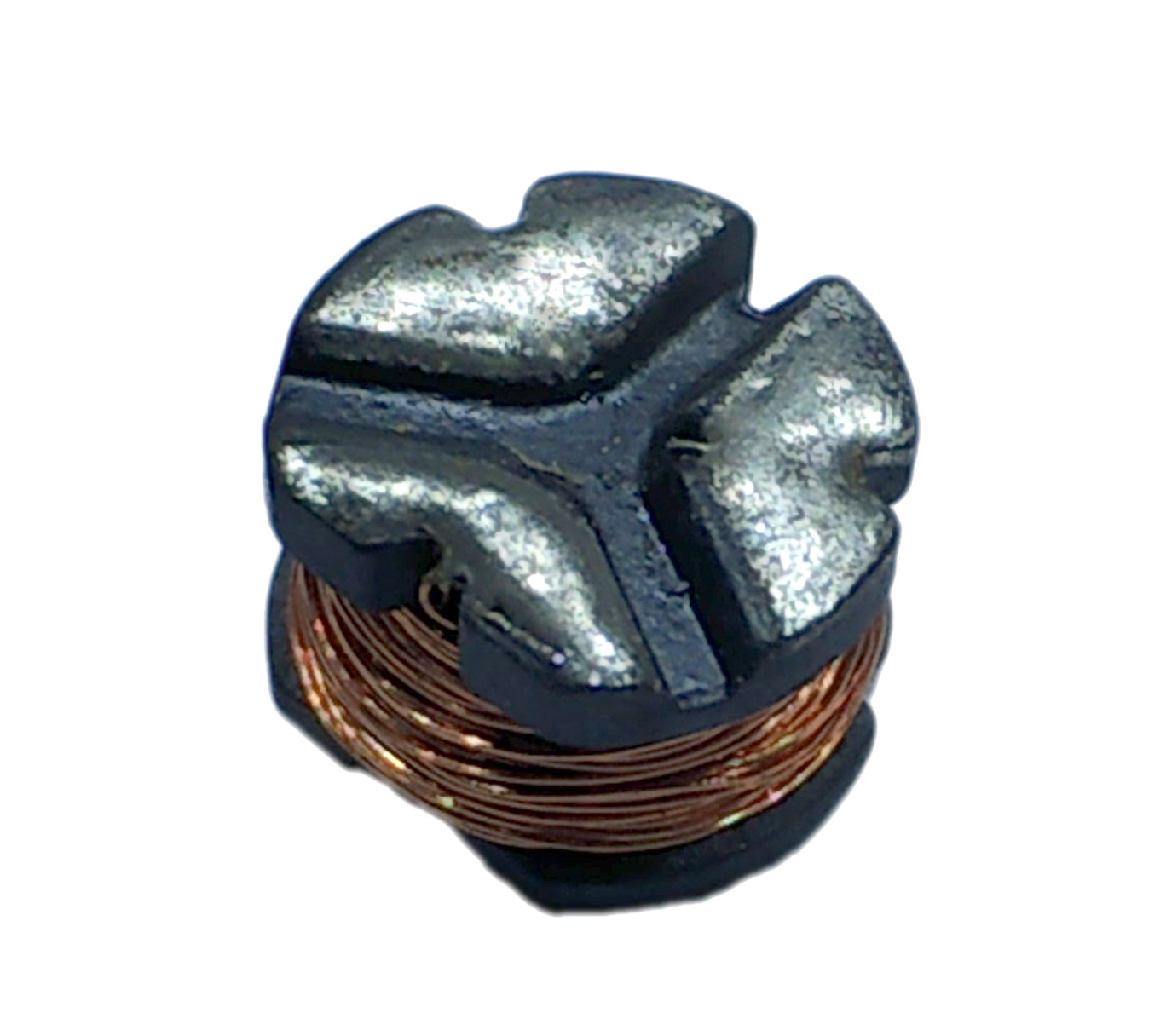

SMD 3 Pins Wire Wound Boost Inductor CD75-25UH / 800UH

SMD 3 Pins Wire Wound Boost Inductor CD75-25UH / 800UH
SMD 3 Pins Wire Wound Boost Inductor CD75-25UH / 800UH SMD 3 Pins Wire Wound Boost Inductor CD75-25UH / 800UH SMD 3 Pins Wire Wound Boost Inductor CD75-25UH / 800UH SMD 3 Pins Wire Wound Boost Inductor CD75-25UH / 800UH

Large Image :  SMD 3 Pins Wire Wound Boost Inductor CD75-25UH / 800UH Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDR0805A-2W Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Name: Drives Inductor Applications: Atomizer / Alarm / Buzzer
Installation: SMD Core: Ferrite H Type Core
Storage Temperature: -25℃ To +105℃ Packaging: 13 "ree And Cartons
High Light:

3 Pins Boost Inductor

,

Wire Wound Boost Inductor

,

SMD Wire Wound Inductors



SMD 3 Pins Boost inductor, CD75-25UH/800UH Wire wound Power Inductors,SMD inductor,Three-lead inductor





Electrical specification​:

  • L(1-2): 25uH±30% @1.0KHz,0.25V
  • L(3-1): 800uH±30% @1.0KHz,0.25V
  • DCR(1-2): 0.5Ω Max
  • DCR(3-1): 4.0Ω Max
  • IDC(1-2): 1.3A Max(Inductance drop 30% Max)
  • IDC(3-1): 0.3A Max(Inductance drop 30% Max)

Features:

  • Wire wound inductor
  • Low DC resistance
  • High reliability and nice solderability
  • Low and square profile
  • High heat-resistant
  • Low cost
  • Lead-free
Applications:
  • Hard disk drives
  • Network systems
  • VCRs
  • DC to DC converters
  • LCD and PDP televisions
  • XDSL and top set
  • Computer peripheral equipment

RoHS Directive-compliant



Packaging



SMD 3 Pins Wire Wound Boost Inductor CD75-25UH / 800UH 0

Normally are cartons, but also we can pack it according to your requirements



Note: Product specifications can be customized.
