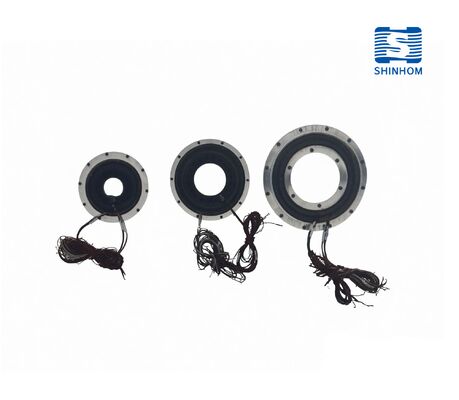

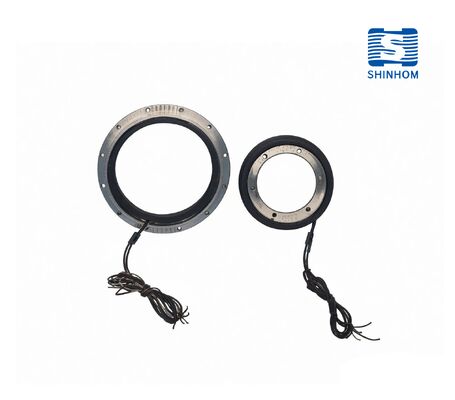

High-Precision Dual Channel Rotary Transformer with Ferrite Core for Wide Temperature Range Signal Conversion

MOQ
MOQ
High-Precision Dual Channel Rotary Transformer with Ferrite Core for Wide Temperature Range Signal Conversion
Features Gallery Product Description Chat Now
Features
Specifications
Signal Channels:: Dual-channel For Precise Two-way Signal Conversion.
Inductance:: Model-dependent: Optimized For High-precision Signal Processing.
DC Resistance:: Low DC Resistance To Minimize Power Loss And Ensure Efficient Signal Conversion.
Core Material:: Ferrite Core: Chosen For Its High Magnetic Permeability And Low Core Loss.
Operating Temperature:: -40°C To +85°C: Suitable For Use In A Wide Range Of Temperatures.
Mechanical Durability:: High Mechanical Stress Resistance For Reliable Operation Under Harsh Conditions.
Customization:: Customizable Design To Meet Specific Application Requirements.
Signal Integrity:: Minimized Signal Distortion For Accurate Data Transmission And High Reliability.
Highlight:

Ferrite Core Rotary Transformer

,

Signal Conversion Rotary Transformer
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: Dual-Channel Rotary Transformer
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
High-Precision Dual Channel Rotary Transformer

Engineered for high-precision signal conversion in complex industrial, communication, and sensor systems. This transformer offers stable and reliable performance, ensuring accurate signal transmission and measurement in demanding environments.

Key Features

Designed with high reliability, this precision signal transformer minimizes signal distortion and guarantees long-term durability under continuous operation. It supports dual-channel signal processing with high accuracy in both directions of signal conversion, optimized for environments requiring minimal signal degradation.

Technical Specifications
  • Channel Type: Dual-channel signal conversion for precise data transmission
  • Voltage Rating: Model-dependent, designed to handle various voltage levels
  • Frequency Response: Optimized for high-frequency applications with minimal signal distortion
  • Inductance: Precision inductance for accurate signal conversion and measurement
  • DC Resistance: Low resistance design to reduce power loss and enhance efficiency
  • Temperature Range: Operates effectively within -40°C to +85°C
  • Mechanical Durability: Robust construction designed for reliable performance under mechanical stress
  • Core Material: High-performance materials selected for minimal signal loss and durability
Product Parameters
Motor ModelNumber of Pole PairsExcitation Frequency (Hz)Excitation Voltage (V)Output Voltage (V)AccuracyZero Voltage (mV)Phase Shift (°)Weight (g)Temperature (°C)
CoarseFineCoarseFineCoarse(')Fine(")Coarse (')Fine (")
J40XFS0021162000422≤20≤±20≤±40≤±20≤±40≤100-55~+85
J50XFS0021162000422≤20≤±20≤±30≤±20≤±35≤120-55~+85
J60XFS0021162000422≤20≤±20≤±25≤±20≤±30≤180-55~+85
J65XFS0021162000422≤20≤±20≤±25≤±20≤±30≤235-55~+85
J70XFS0021322000422≤25≤±20≤±25≤±20≤±30≤260-55~+85
J75XFS0021322000422≤25≤±20≤±25≤±20≤±35≤280-55~+85
J78XFS0021322000422≤25≤±20≤±20≤±25≤±40≤320-55~+85
J80XFS0021322000422≤25≤±20≤±15≤±20≤±40≤350-55~+85
J90XFS0021322000422≤25≤±20≤±15≤±20≤±30≤400-55~+85
J100XFS0021322000422≤25≤±20≤±15≤±20≤±38≤420-55~+85
J110XFS0021322000422≤25≤±20≤±15≤±20≤±40≤500-55~+85
J120XFS0021322000422≤25≤±15≤±15≤±10≤±10≤600-55~+85
J130XFS0021322000422≤25≤±20≤±15≤±20≤±38≤700-55~+85
J150XFS0021322000422≤25≤±20≤±10≤±20≤±35≤800-55~+85
Applications
Industrial Control Systems
Used in automation systems for precise position and signal feedback in rotating machinery and other industrial applications.
Telecommunication Systems
Provides reliable signal conversion in communication devices, ensuring high-quality signal integrity for data transmission.
Sensor Technology
Ideal for sensor applications requiring precise signal processing and minimal noise interference.
Power Systems
Used in power management systems for stable signal conversion, reducing electrical noise and enhancing system efficiency.
Test & Measurement Equipment
Essential in precision instruments requiring high accuracy and low signal distortion for accurate data readings.
Tag:

High-Precision Rotary Transformer

Ferrite Core Signal Transformer

Wide Temperature Range Single Channel Transformer
