High-Efficiency DC Brushed Coreless Motor with Compact Size and Low Power Consumption for Precision Applications

MOQ
MOQ
High-Efficiency DC Brushed Coreless Motor with Compact Size and Low Power Consumption for Precision Applications
Features Gallery Product Description Chat Now
Features
Specifications
Voltage:: 3V / 6V / 12V (depending On Model)
Torque:: 0.01 Nm To 0.2 Nm (depending On Model)
Speed Range:: 1000 To 8000 RPM
Efficiency:: Up To 85%
Motor Type:: DC Brushed Coreless Motor
Operating Temperature:: -10°C To +50°C
Weight:: 0.05 Kg To 0.2 Kg (depending On Model)
Customization:: Available For Custom Voltage, Torque, And Speed Configurations
Cooling Type:: Natural Air Cooling
Noise Level:: ≤50dB (depending On Load And Speed)
Rotor Inertia:: Low Inertia For Fast Response And Minimal Vibration
Applications:: Small Appliances, Robotics, Precision Equipment, Hobby Applications
Highlight:

Compact DC Brushed Coreless Motor

,

Precision Applications Coreless Motor

,

Low Power Consumption Coreless Motor
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: DC Brushed Coreless Cup Motor
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description

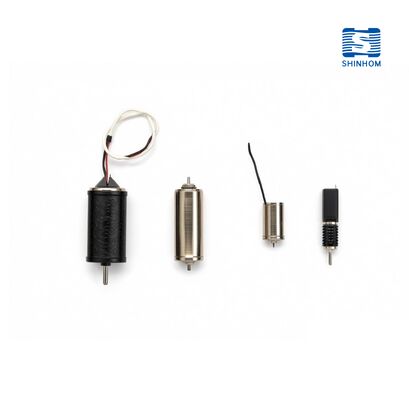

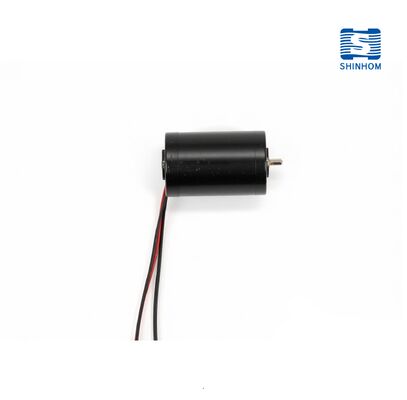

High-Efficiency DC Brushed Coreless Cup Motor

This compact DC brushed coreless cup motor delivers powerful torque in a small, lightweight form factor, making it ideal for space-constrained applications requiring high performance and efficiency.

Product Features
  • Coreless Design: High efficiency with reduced weight and minimal electrical losses
  • Compact Size: Small form factor with high torque output for tight spaces
  • Low Power Consumption: Energy-efficient operation with minimal heat generation
  • Smooth Operation: Consistent rotation for reliable performance in precision applications
  • Long Lifespan: Extended operational life due to reduced wear from coreless design
Technical Data
Product Model Rated Voltage (V) Rated Current (A) Rated Speed (r/min) Rated Torque (mNm) Weight (g)
J14SYK01 12 ≤0.75 7400 ≥7 ≤30
J14SYK02 12 ≤0.75 22400 ≥2.5 ≤30
J16SYK01 24 ≤0.75 11000 ≥12 ≤45
J17SYK01 12 ≤0.25 4600 ≥3.2 ≤40
J19SYK01 24 ≤0.75 10700 ≥11 ≤50
J20SYK01 6 ≤0.12 3000 ≥10 ≤55
J22SYK01 12 ≤0.4 5300 ≥3.9 ≤65
J22SYK02 24 ≤0.9 11000 ≥12 ≤75
J22SYK03 36 ≤1.9 10600 ≥26.5 ≤75
J25SYK01 24 ≤1.8 9700 ≥31 ≤110
J30SYK01 24 ≤3.8 8100 ≥85 ≤245
J30SYK02 48 ≤1.9 7750 ≥92 ≤260
J35SYK01 24 ≤4 7000 ≥105 ≤350
J40SYK01 24 ≤7 7030 ≥181 ≤450
Applications
  • Small Appliances: Compact household gadgets including fans, vacuum cleaners, and kitchen tools
  • Robotics: Robotic actuators and joints where space and efficiency are crucial
  • Precision Equipment: Applications requiring smooth motor operation such as camera systems and medical devices
  • Modeling & Hobbies: Model aircraft, drones, and hobbyist applications requiring lightweight, efficient motors
