High-Efficiency Compact DC Brushless Coreless Motor with Low Inertia for Robotics and Medical Devices

MOQ
MOQ
High-Efficiency Compact DC Brushless Coreless Motor with Low Inertia for Robotics and Medical Devices
Features Gallery Product Description Chat Now
Features
Specifications
Voltage:: 3V / 6V / 12V (depending On Model)
Torque:: 0.02 Nm To 0.3 Nm (depending On Model)
Speed Range:: 1000 To 5000 RPM
Efficiency:: Up To 90%
Motor Type:: DC Brushless Coreless Motor
Protection Class:: IP40
Operating Temperature:: -10°C To +50°C
Weight:: 0.05 Kg To 0.2 Kg (depending On Model)
Customization Options:: Available For Custom Voltage, Torque, And Speed Configurations
Cooling Type:: Natural Air Cooling
Noise Level:: ≤50dB (depending On Load And Speed)
Rotor Inertia:: Low Inertia For Fast Response And Minimal Vibration
Commutation Type:: Brushless
Applications:: Robotics, Medical Devices, Portable Electronics,Drone
Highlight:

High-Efficiency DC Brushless Coreless Motor

,

Low Inertia DC Brushless Coreless Motor
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: DC Brushless Coreless Cup Motor
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description

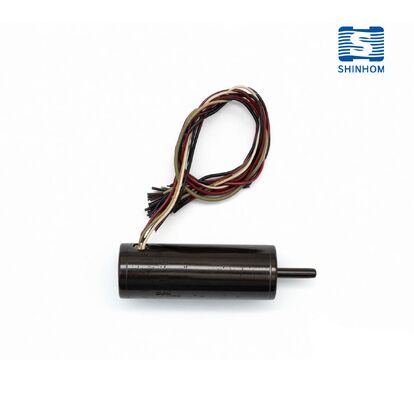

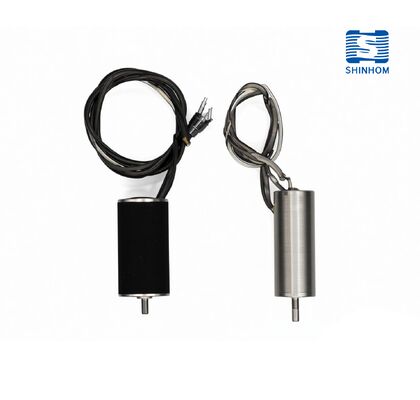

High-Efficiency DC Brushless Coreless Cup Motor

Designed for compact, energy-efficient applications where high torque and long operational life are essential. This motor utilizes a coreless design that eliminates the iron core, reducing weight and electrical losses while increasing efficiency. Ideal for space-constrained environments including robotics, medical devices, and portable electronics.

Key Features
  • Coreless Design: Eliminates iron core for reduced weight and improved efficiency
  • Brushless Technology: Provides lower maintenance and longer lifespan compared to traditional brushed motors
  • Compact and Lightweight: Delivers high torque in a small form factor, ideal for tight spaces
  • Energy-Efficient: High efficiency with minimal power consumption, perfect for battery-powered devices
  • Smooth and Reliable: Ensures consistent performance for precision and high-reliability applications
Technical Data
Model Rated Voltage (V) Rated Current (A) Rated Speed (r/min) Rated Torque (mNm) Weight (g)
J14ZWK01 12 ≤0.75 22400 ≥2.5 ≤30
J16ZWK01 15 ≤1.5 12000 ≥12 ≤70
J20ZWK03 24 ≤0.35 4100 ≥13 ≤120
J22ZWK01 24 ≤2.5 8800 ≥48 ≤120
J25ZWK01 28 ≤1.8 8000 ≥40 ≤120
J25ZWK02 28 ≤4.8 4100 ≥105 ≤120
J25ZWK03 28 ≤1.8 4200 ≥60 ≤170
J28ZWK01 14 ≤3 8100 ≥30 ≤95
J32ZWK01 24 ≤2.7 9450 ≥47 ≤270
J40ZWK01 48 ≤4 9150 ≥160 ≤590
J44ZWK01 24 ≤1.3 4100 ≥60 ≤125
J45ZWK01 28 ≤10 6700 ≥320 ≤420
J50ZWK01 48 ≤2.1 7750 ≥80 ≤300
Applications
  • Robotics: Precision actuators and robotic joints in small form factors
  • Medical Devices: Equipment requiring efficient, compact motors for precise movement
  • Portable Electronics: Space-limited applications requiring high performance in cameras and handheld devices
  • Modeling & Hobby Projects: Model aircraft, drones, and hobbyist applications needing lightweight motors
