High Current Shielded SMD Inductor SDRH Series Flat-Top for Notebooks and LCD TVs

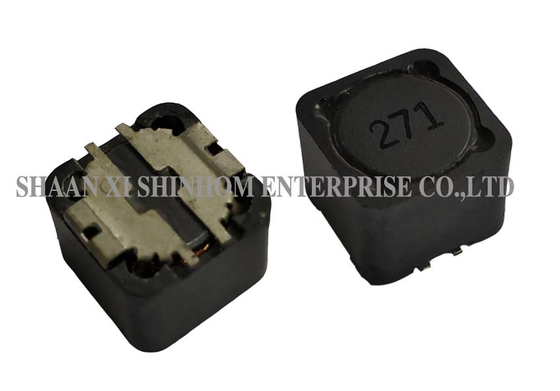

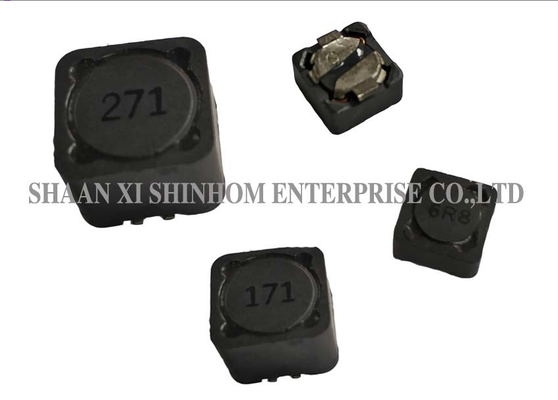

The SDRH series magnetic shielded SMD power inductor uses a magnetic shield structure and low-profile package design. It effectively reduces EMI and is suitable for high-density PCB layouts and space-constrained applications. The low DCR allows high current flow. The excellent thermal stability ensures long-term reliable operation under various working conditions. The flat top design is suitable for automated pick-and-place assembly, supporting automated SMT production. It is widely used in DC-DC converters, portable communication devices, cameras, LCD TVs, PDAs, PDPs, and laptops.

• Shiedlded Structure
• Flat-top for pick and place
• Low Resistance Allow high Current
• Excellent Thermal Stability
• Low profile

• Ideal for a variety of DC-DC converter Inductors Applications.
• DC/DC converter
• Power supplies for: porttable communication equipment
• Camcordert
• LCD,TV,PDA,PDP
• Notebook computer

• Inductance is measured with HP-4284A LCR meter or equivalent.
• Maximum allowable DC current is that which causes a 25% inductance reduction of the initial value, or coil temerature to rise by 40℃,whichever is smaller.(Reference ambient temperature 20℃)
• Operating temperature:-25℃~+85℃.

Note: Product specifications can be customized.
