SDRH2D11/3D16 Series -40°C to +105°C for Communication Systems and Video Cameras

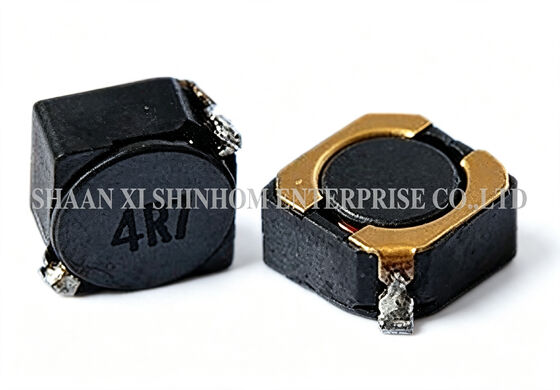

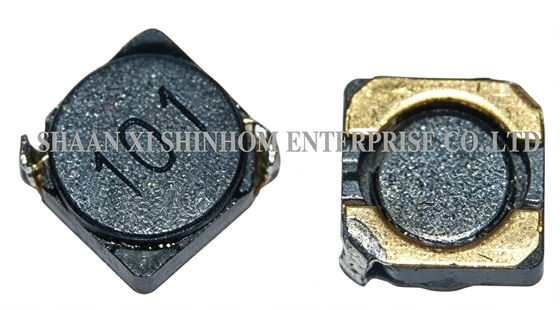

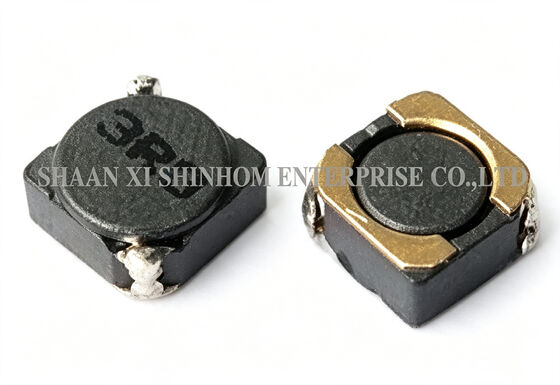

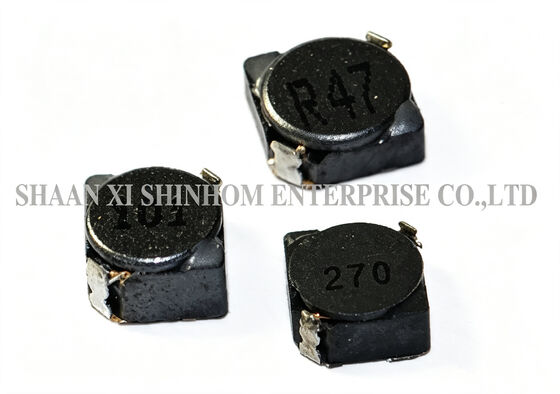

The SDRH2D11/3D16 series magnetic shielded SMD power inductor uses a magnetic shield structure and square flat package design. It effectively reduces EMI and is suitable for high-density PCB layouts and space-constrained applications. Inductance range covers 1.0μH to 47μH. High current capacity is up to 1.8A. Low DCR ensures high conversion efficiency. Excellent thermal stability and high heat resistance ensure long-term reliable operation under various working conditions. It is widely used in video recorders, laptops, DC-DC converters, video digital cameras, communication systems, automotive power systems, and LCD/PDP TVs.

• Large current up to 1.8A
• Inductance range 1.0uH to 47uH
• Magnetically Shielded Structure
• Low DC Resistance
• Low and square Profile
• High heat resistance

• VCRs, Notebook, DC/DC Converters
• Video Digital Cameras
• Communication System
• Automotive Systems Power supplier
• LCD PDP Televisions

• Inductor Testing: HP4284A (Equivalent acceptable)
• DCR:QuadTech 1880 Milliohmmeter
• IDC Max current is decreased 10% against its initial value
• Operating temperature: -40℃ to +105℃
• Storage Temperature: -40℃ to +105℃

Note: Product specifications can be customized.Custom inductance values are available.
