Hall Effect Current Sensor HBC-LSR5 Series 50A 0.8V Output for New Energy and Battery Management

5000PCS
MOQ
Negotiation
Price
Hall Effect Current Sensor HBC-LSR5 Series 50A 0.8V Output for New Energy and Battery Management
Features Gallery Product Description Chat Now
Features
Specifications
Supply Voltage: 5V (±5%)
Rated Input: 0A~50A
Rated Output: ±0.8V±0.5%
Offset Voltage: 2.5V±0.5
Output Voltage Drift: ≤±0.05mV/℃
Customized: Yes
Highlight:

Hall Effect Current Sensor 50A

,

Hall Effect Current Sensor 0.8V Output

,

Hall Effect Current Sensor for Battery Management
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HBC-LSR5
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

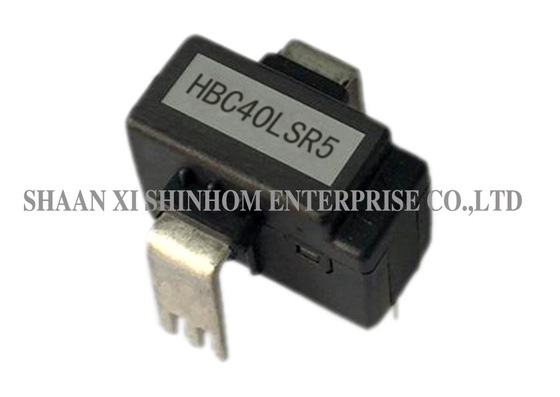

The HBC-LSR5 series closed-loop Hall effect current sensor uses the Hall effect and zero-flux balance method for measurement, providing electrical isolation between the primary and secondary circuits. It accurately measures DC, AC, or pulse currents with a measuring range of 0-50A. The product has a supply voltage of 5V±5% and a rated output voltage of ±0.8V±0.5%. It offers high accuracy and easy installation. Customisation of different rated input currents and output currents is supported. It is widely used in industrial control, power monitoring, new energy, battery management, and various DC/AC/pulse current measurement applications.

Features:
  • Operating currents: 0 to 50A
  • Power supply: 5V ±5%
  • Rated output voltage: ±0.8V±0.5%
  • Mount easily
  • High accuracy grade
Applications:
  • Switched mode power supplies (SMPS)
  • Uninterrupted power supplies (UPS)
  • Power supplies for welding applications
  • Battery supplied applications
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
ELECTRICAL DATA:

HBC06

LSR5

HBC10

LSR5

HBC15

LSR5

HBC20

LSR5

HBC25

LSR5

HBC30

LSR5

HBC40

LSR5

HBC50

LSR5
Rated input current(IP) 6 10 15 20 25 30 40 50 A
Test current range ±15 ±25 ±37.5 ±50 ±62.5 ±75 ±100 ±105 A
Turns ratio(Np/Ns) 1:1200 1:1000 1:1125 1:1000 1:1250 1:1125 1:1000 1:1000 T
Rated output voltage ±0.8±0.5% V
Supply voltage +5±5% V
Offset voltage 2.5±0.5% V
Reference voltage(VR) 2.5±0.8% V
External reference voltage 2.0-2.8 V
Offset voltage Drift ≤±0.1 mV/℃
Output voltage Drift ≤±0.05 mV/℃
Linearity(Ip=0-±Ipn) ≤±0.2 %FS
Class ≤±1.0 %
di/dt ＞50 A/µS
Response time ≤1 µS
Bandwidth(-1db) DC～100 KHZ
Insulation voltage 2.5@(50HZ,1min) KV
Operating Temperature -40～+85 ℃
Storage Temperature -40～+105 ℃

Notes: Product specifications can be customized

Hall Effect Current Sensor HBC-LSR5 Series 50A 0.8V Output for New Energy and Battery Management
FAQ

Q: What is the working principle of the zero-flux balance method?

A: The zero-flux balance method (closed-loop Hall effect) uses a Hall element to detect the magnetic field generated by the measured current. The output signal drives a compensation coil to generate an opposing magnetic field, keeping the net magnetic flux in the core at zero. The compensation current is proportional to the measured current, providing high-accuracy, low-temperature-drift measurement results.

Q3: Does this product support customisation?

A: Yes. Customisation of different rated input currents and output current specifications is available to meet diverse application requirements. Please contact our sales team for details.

Q: What types of current can this sensor measure?

A: It can accurately measure DC, AC, and pulse currents, suitable for various complex current waveform measurement requirements.
